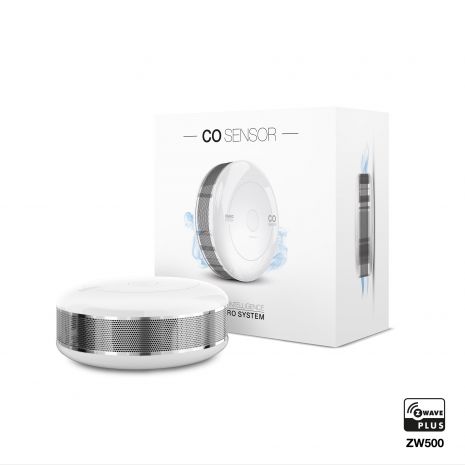

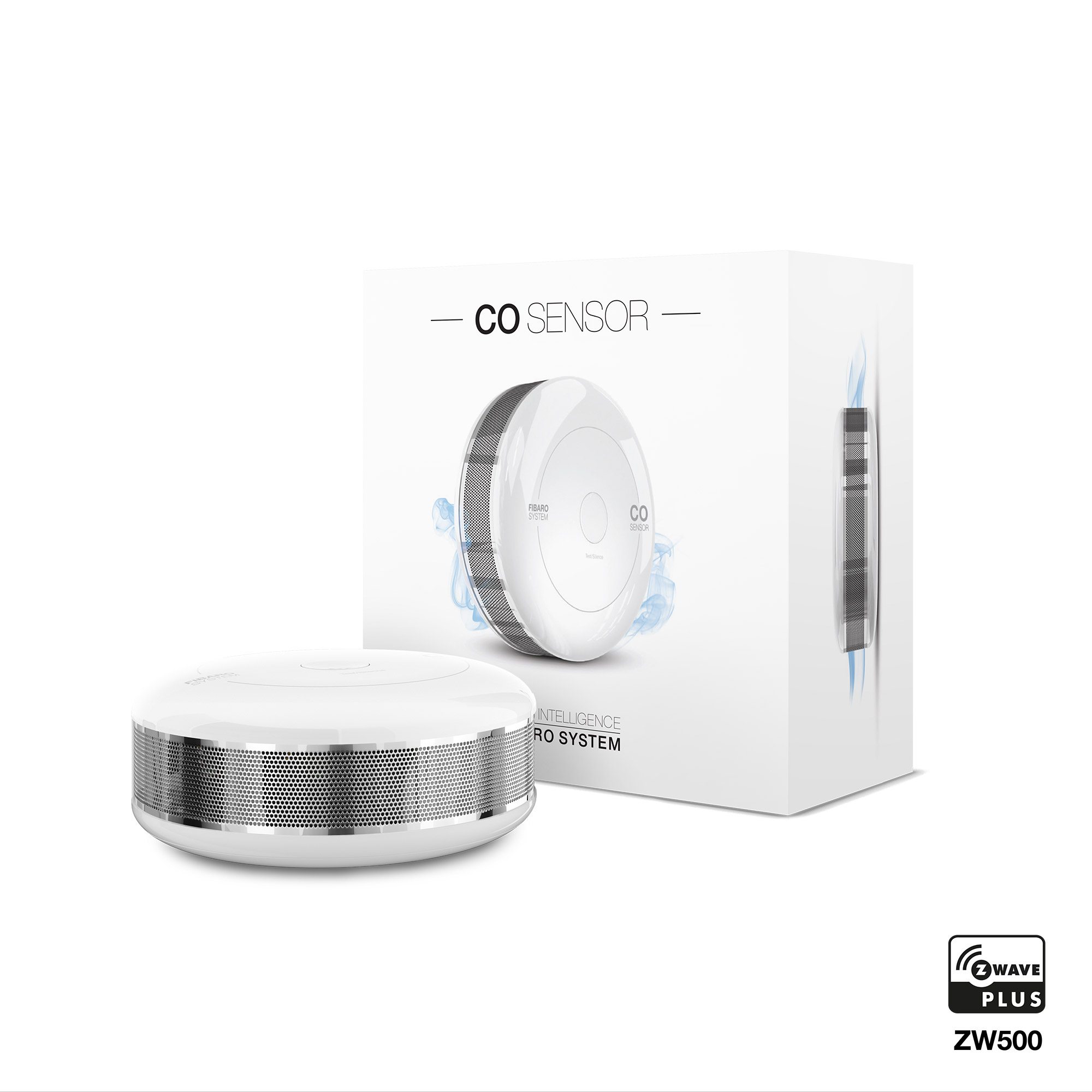

FIBARO CO Sensor is an ultra-light, compact, battery-powered carbon monoxide detector, designed to be placed on a wall.
Its high sensitivity allows detecting the presence of the carbon monoxide (CO) gas at the early stage to prevent carbon
monoxide poisoning. The alarm is signaled with a built-in siren, blinking LED indicator and by sending commands to Z-Wave network devices.
Additionally, the device is equipped with a temperature sensor.
Features
Compatible with any Z-Wave or Z-Wave+ Controller
Supports protected mode (Z-Wave network security mode) with AES-128 encryption
Wall-mounted
Battery-powered
Completely wireless
Alarm signalled with a built-in siren and LED diode
Built-in temperature sensor
Technical data
Power supply: CR123A battery, 3.0V DC
Lifespan under typical conditions: 8 years
CO concentration measurement range: 0 – 450 ppm
Measuring accuracy: ±10ppm / ±5%
Operating temperature: 0 – 50°C
Operating humidity: 10-95%RH without condensation
Alarm siren sound level: 85 dBA at 3 meters (10 feet)
Alarm response times on
default settings: 50ppm 60-90min
100ppm 10-40min
300ppm <1.5min
EU directives compliance: RED 2014/53/EU
RoHS 2011/65/EU
EN 50291-1:2010
Radio protocol: Z-Wave (500 series chip)
Radio frequency: 868.4, 868.42 or 869.8 MHz EU;
908.4, 908.42 or 916.0 MHz US;
921.4, 921.42 or 919.8 MHz ANZ;
869.0 or 869.02 MHz RU;
Range: up to 50m outdoors
up to 40m indoors
(depending on terrain and building structure)
Dimensions (diameter x height): 65 x 28 mm
