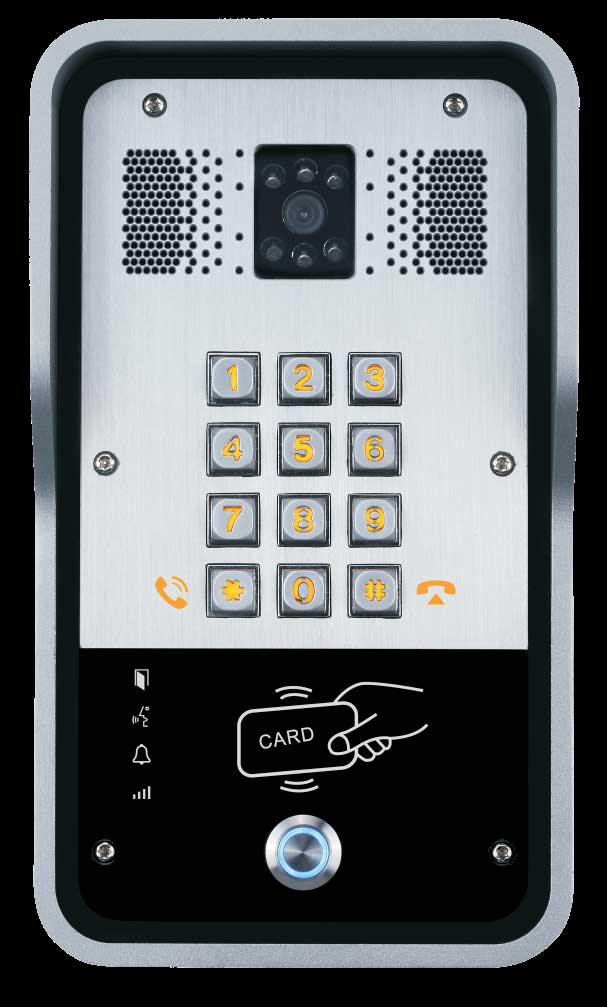

The Fanvil i31 is a SIP door phone that brings in the next generation of entry control and monitoring. The i31 combines IP technology with industry standards for access and physical security to deliver a system that improves communication for tenants, guests and visitors.
Fanvil i31 SIP Door Phone Key Features
- Two high sensitive microphones with echo cancellation and reduction of background noise
- 3W Speaker for loud environments
- Water, dust and tamper proof. IP65 and IK10 certified
- Backlit keyboard for telephone calls and opening of door
- Tamper switch
- Night vision color camera, viewing angle 120
- Integrated electrical switch relay for door control
- All in ONE-door access, intercom and paging service
The Fanvil i31 has flexibility, ease of use and simple installation, making it ideal for enhancing security posture in schools, offices, and other public facilities.
Fanvil i31 SIP Door Phone - Technical Specifications
Benefits
- SIP The most popular and compatible standard protocol - SIP - enables delivery of worry-free communication and connectivity.
- HD Video The 1280x720p (720p – progressive scan) camera produces vibrant high quality HD video and captures motion effortlessly.
- Noise Reduction The embedded processing module reduces environmental noise and improves voice recognition up to 5 meters (approx. 16 feet).
Multi-function The system is capable of performing multiple functions, i.e. video intercom and door phone and single device paging, and can be configurable with additional features. - HD Voice High definition voice using wideband G.722 coding produces clearer sound quality and extends the frequency range.
- Anti-tamper Alarm sounds if/when cover is removed from the housing and reports the action to the control center.
- Wide Range temperature adaptability The system design adapts to operating under various environmental conditions and temperatures (supports temperatures ranging from - 40 to +70 Celsius.)
Protocol
- SIP 2.0(RFC3261)
Buttons
- Number of buttons 1
- Number of keypad Optional
Audio
- Microphone 2
- Loudspeaker 3W
- Noise Reduction(NR) yes
Audio stream
- Codec G.711,G.729,G.722,etc
Camera
- Resolution
- View angle 120°(H),109°(V)
- IR Night Vision yes
Video stream
- Codec H.263,H.263+,H.264
- Resolution CIF,QCIF,VGA,4CIF,720P(HD)
RFID Card reader
- Supported cards EM-4100,MIFARE one, NFC
Interface
- Power supply 12V+ 15%/1A DC or POE
- POE 802.3af (Class 0 - 12.95W) 48V/380mA
- LAN 10/100BASE-TX s Auto-MDIX,RJ-45
- Relay outputs NC/NO Contacts, MAX 30V/1A AC/DC
- Active relay output 12V/700mA DC
- Input two input detect ports
- Output (2 relays) two output control ports
Mechanical
- Housing material Aluminum alloy
- Operating temperature range -40? to 70?
- Storage temperature range -40? to 70?
- Relative humidity 10% - 95%
- Installation Surface mounted or Flush mounting
- Dimensions 159X120X36 mm
- Protection level IP65 and IK10
Datasheet
Part Number:
i31
Προμηθευτές:
Fanvil
