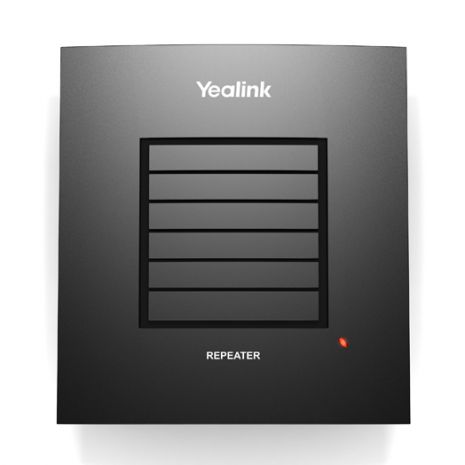

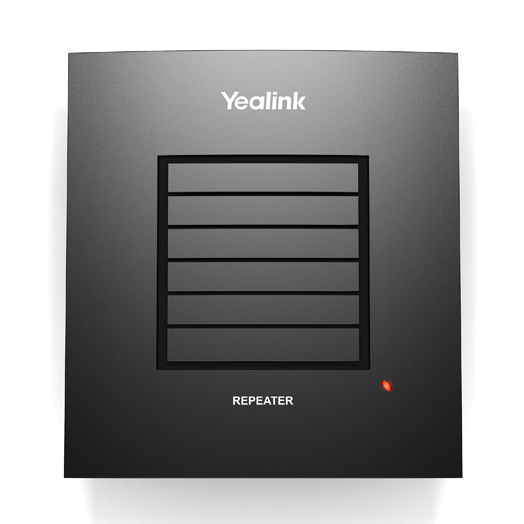

The Yealink DECT repeater can be deployed when there is a desire to extend the range of the W52P, The repeater can also be utilised wherever there is a need to increase limited coverage or improve reception in remote areas.
Resources
| Features |
|
> Up to 6 repeaters per base station > Up to 50m indoors and 300m outdoors |
| Specification |
General features
> Worldwide DECT support
> Extending the DECT coverage
> Supports automatic handover of calls between cells
> Handling of 2 active calls simultaneously
> Up to 6 repeaters per base station
> Automatic registration method
> Manual registration method
Frequency/Coverage
> Frequency bands coverage: DECT, EU/AU/NZ & US/CA
> Additional coverage between base station and handset:
up to 50m indoors and 300m outdoors
> Receiver sensitivity: -92dBm
> 2 internal omni-directional antennas
Design/Size
> Indoor cabinet
> Easily mounted on walls
> Size: 120(W) x 35(D) x 135(H)mm
Standards/Approvals
> The DECT repeater is designed in accordance with the
Digital Enhanced Cordless Telecommunications
(DECT) standard
> The DECT repeater is compliant with:
- TBR6, TBR22 (Generic Access Profile, GAP)
- ETS 300 700 - ETSI Wireless Relay Station
Specification
Power supply
> Input: 230 V/50-60HZ/45mA Output:5V/300mA
LED Indicator
> LED Indicator
