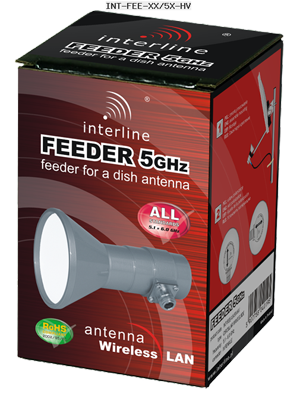

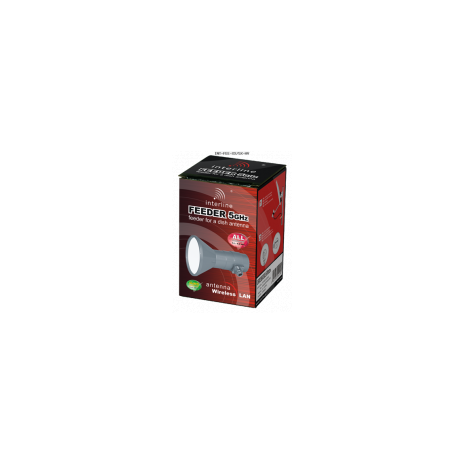

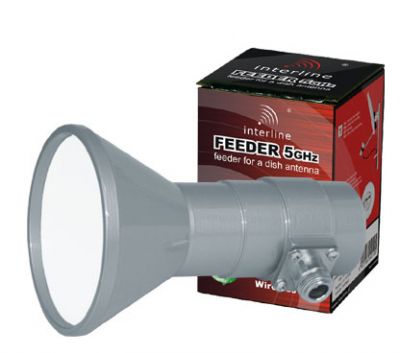

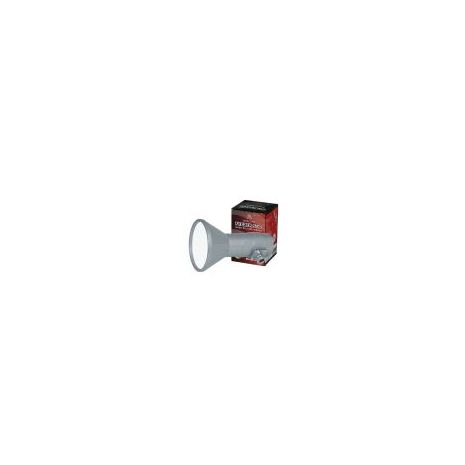

    Interline Feeder 5GHz

    28.45 €
    (35.28 € Με ΦΠΑ)
    730 ημέρες
    Βάρος: 0.24 kg ανά τεμάχιο
    117-0686
    + −
    στα Αγαπημένα
    Compare

    antenna overview

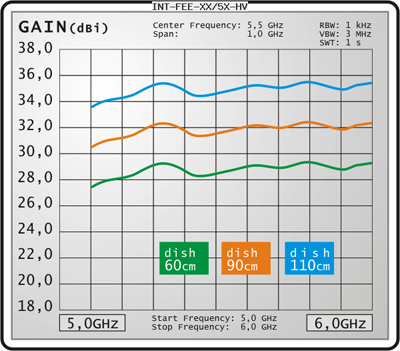

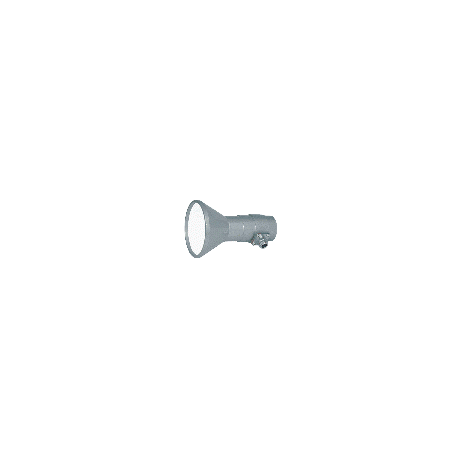

    Feeder for parabolic antennas, made in waveguide technology. The precise shape of the aluminum die-cast takes full advantage of the antenna aperture, and excellent electrical parameters provide a high gain on the parabolic antenna: 29 dBi for the dish with a diameter of 60 cm, 32 dBi for the dish of 90 cm and 35 dBi for the 120 cm dish.

    key features

    furthermore

    • Modular construction ensures reliable operation in the harshest weather conditions.




    technical specification

    INT-FEE-XX/5X-HV
    Electrical
    product code INT-FEE-XX/5X-HV
    frequency 5100-6000MHz
    impedance 50Ω

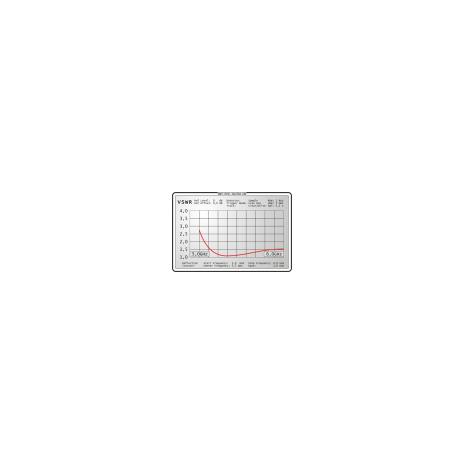

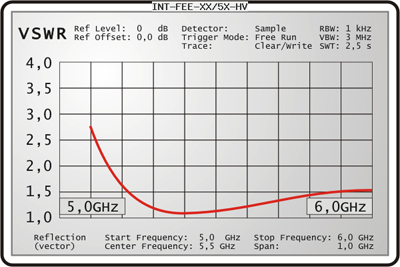

    VSWR (max) 2.0

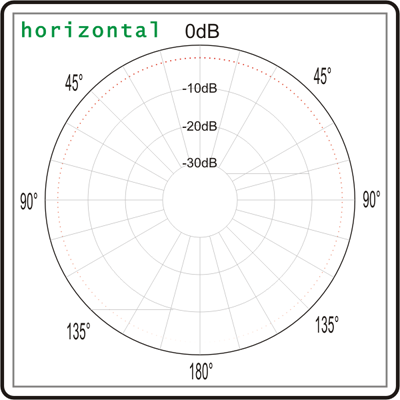

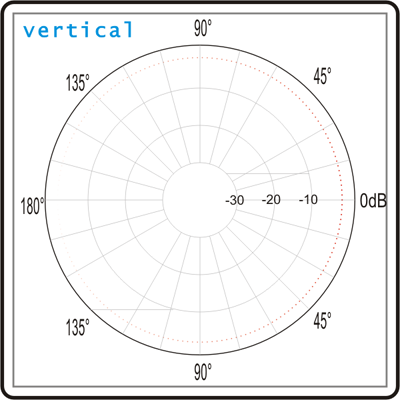

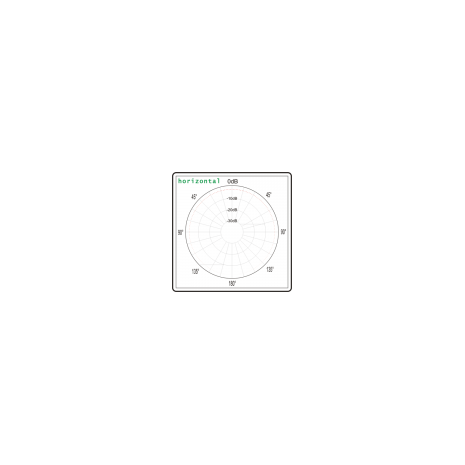

    polarization horizontal or vertical
    gain 14dBi
    Mechanical
    dimensions (excl. mounting) 136x86mm
    weight (incl. mounting) 0.24kg
    connector N female
    mounting diameter ø 40mm
    technical specification PDF

    technical specificationPDF
    version: 16.02.2010
    Part Number:
    INT-FEE-XX/5X-HV
