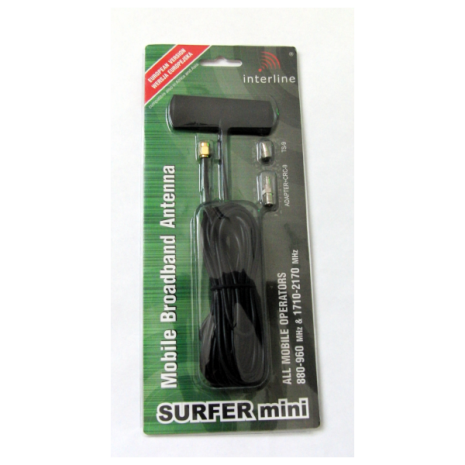

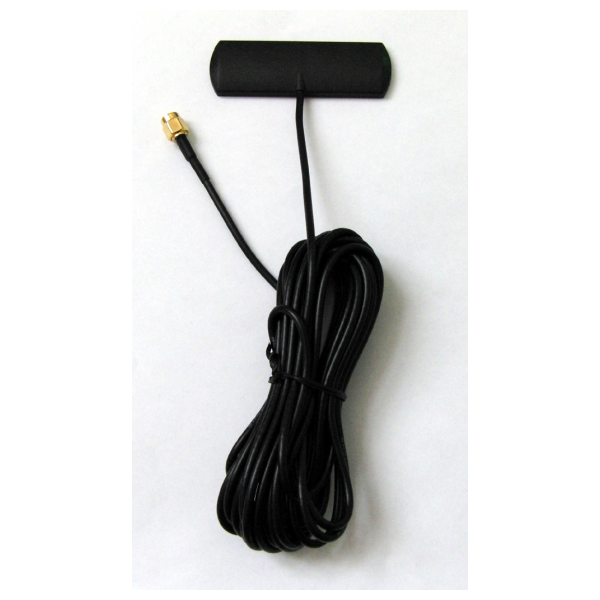

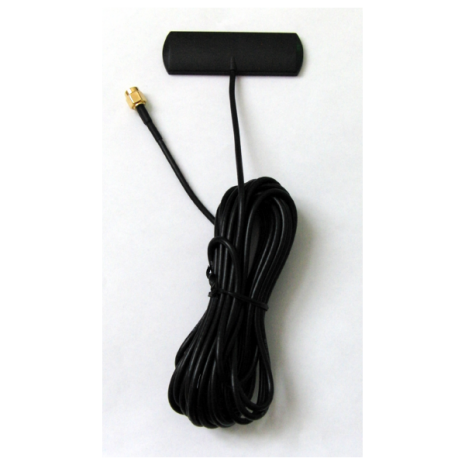

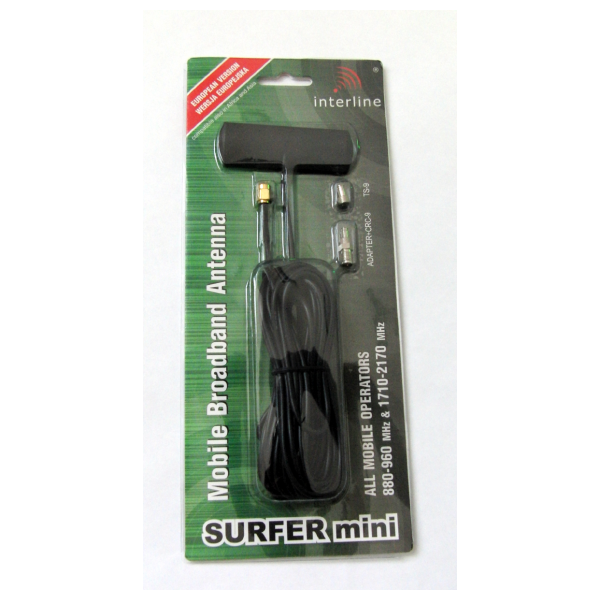

Mobile Broadband Antenna

ALL MOBILE OPERATORS
880-960 MHz & 1710-2170 MHz

SURFER mini is one of the most versatile antenna for cellular networks. The antenna is adjusted to the frequency of mobile network operators worldwide (with the exception of North and South America).

suitable for following modems
connector: CRC9

Huawei: E122, E153, E1553, E156G, E159, E160, E160E, E160G, E161, E1612, E161G, E166, E169, E173, E176, E1762, E176G, E182, E1820, E1823, E182E, E196G, E353, E367, E3735, E583C, E600, E612, E618, E620, E621, E630, E660, E660A, E800, E880, E881E, K3520, K3771, K4505, K4511, UMG1691, UMG181

connector: TS-9

Huawei: E398

Sierra Wireless: Compass 885, Compass 888, Compass 889, USB597, USB598, AC250U, AirCard 301, AirCard 302, AirCard 305, AirCard 306, AirCard 307, AirCard 308, AirCard 309, AirCard 310, AirCard 312, PCMCIA AC503, PCMCIA AC504, AC402, AC501, AC502, AC503

Novatel Wireless: U727, U760, MC727, MC760, C770, C777

ZTE: MF633, MF633BP+, MF626i, MF645, MF668, MF668+, MF60

Electrical

• Frequency band(s) 880-960MHz, 1710-2170MHz
• Gain 0dBi, 0dBi
• VSWR (max) 1.40:1
• Polarization Horizontal or Vertical
• Half Power Beam Width (-3dB) - horizontal
• Half Power Beam Width (-3dB) - vertical
• DC Ground yes
• Impedance 50Ω

Mechanical

• Connector RP-SMA male, CRC9, TS-9
• Mounting Diameter 3M-Tape
• Dimensions (excl. mount) 72x23x5mm
• Weight (incl. mount) 0.10kg

Enviromental

• Enviroment Outdoor, Indoor
• Windload 2N (@170km/h)
• IP Rating IP63

Compliance

• 2002/95/EC (RoHS) compliant
• 2002/96/EC (WEEE) compliant
