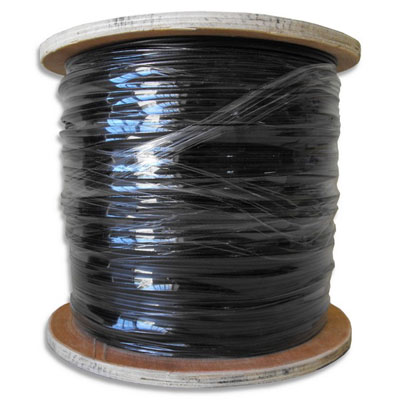

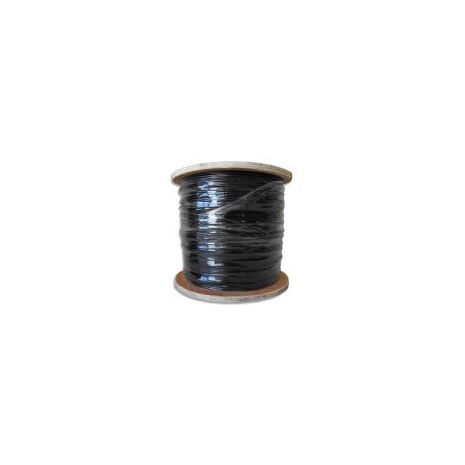

EZ-100, coaxial cable by the meter
EZ-100 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.
It is constructed with a UV resistant polyethylene jacket for outdoor use.
This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.
Ehanced for usage from 2GHz up to 6GHz
| Σύνδεσμοι Προϊόντος: | |||
|---|---|---|---|
 Datasheet |
|||
| Electrical Specifications : | |
|---|---|
| Cutoff Frequency | 63 GHz |
| Velocity of Propagation | 80% |
| Impedance | 50 ohms |
| Capacitance | 25.4 pF/ft (83.3 pF/m) |
| DC Resistance Inner Conductor |
21.4 ohms/1000ft (70.2 ohms/km) |
| DC Resistance Outer Conductor |
14.5 ohms/1000ft (47.5 ohms/km) |
| Peak Power | 0.6 kW |
| Jack Spark | 2000 Volts RMS |

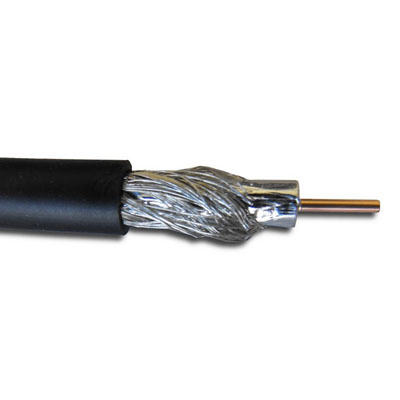

| Cable Construction: | |
| Inner Conductor | Solid Bare Copper 0.46 mm |
| Dielectric | Foam Polyethylene 1.52 mm |
| Outer Conductor | Aluminum Tape 1.65 mm |
| Capacitance | 25.4 pF/ft (83.3 pF/m) |
| Braid | Tinned Copper. 2.11mm |

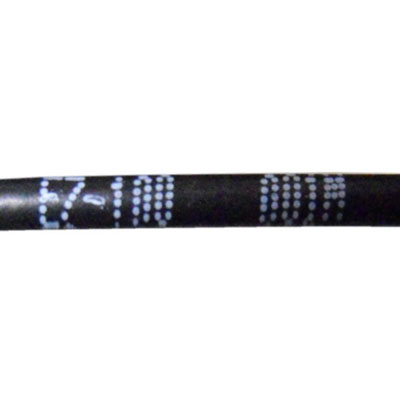

| Jacket | Black PVC/PE. 2.79mm |
| Mechanical and Environmental Specifications: | |
| Minimum Bend Radius | 6.25mm |
| Tensile Strength | 15 lb (6.8 kg) |
| Cable Weight | 0.18kg/m |
| Operating Temperature Range | -40°C to +85°C |
Part Number:
EZ-100-1
