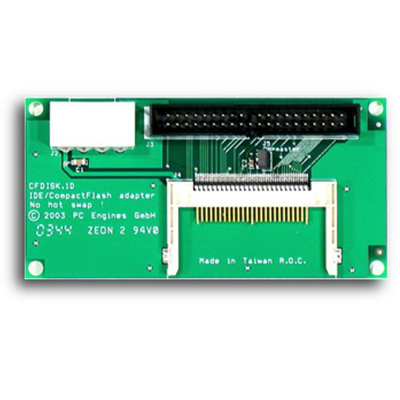

The CFDISK.1E (IDE) allows CompactFlash modules to be used in any system that includes a standard IDE 40 pin connector.
Once the platform starts with the adapter and the CF card plugged in, the compactflash module appears to the system to be a standard disk drive.
Unlike other flash storage systems such DiskOn-Chip modules this solution does not require drivers or additional software to run the unit.
The CF card can be the primary boot device containing the OS and application.

Σύνδεσμοι Προϊόντος:
Schematics	Datasheet

Features:

• Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM
• Due to limitations in the CompactFlash specification, this adapter does not support hot insertion of cards.
• IDE power connector.
• Board is fully assembled (not a kit).
• Transparent to the operating system and does not require any drivers

Specifications:

• Jumper configuration for master (jumper on) or slave (jumper off). Supports IDE DMA.
• Solid state replacement for 3.5" hard disk drives, 40 pin IDE connector.
• Mounting hole locations same as the bottom holes of a hard disk drive.
• Comes with an IDE power connector onboard.
• Board size is 2" x 4".
