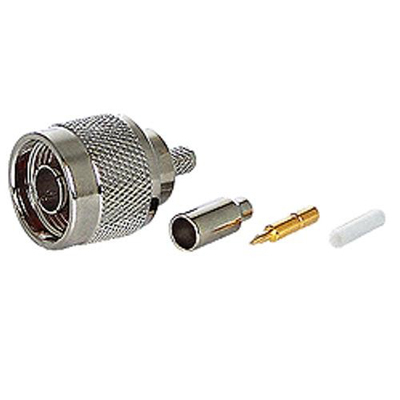

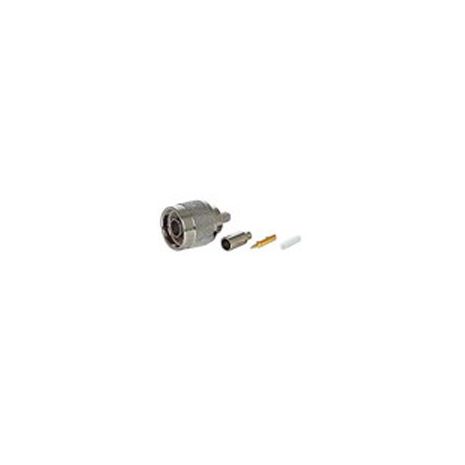

N Male Crimp connector for 100, RG-174, RG-316 series cable.
N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The N series connector is impedance matched to 50 ohm cables.
| Σύνδεσμοι Προϊόντος: | ||
|---|---|---|
 Dimensions |
||
| Materials/Finish : | |||
|---|---|---|---|
| Body | Brass |
Nickel |
|
| Center Pin | Bronze | Gold | |
| Crimp Tube | Annealed Copper | Nickel | |
| Dielectric | Teflon | n/a | |
| Specifications : | ||
|---|---|---|
| Impedance | 50 ohm | |
| Frequency Range | 0 to 11.0 GHz | |
| VSWR | 1.3 max | |
| Working Voltage | 1,000 volts rms max at sea level | |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level | |
| ContactResistance | center contact=1.0 Milliohms max outer contact=1.0 Milliohms max |
|
| Insertion Loss | 0.3 dB max at 10 GHz | |
| Insulation Resistance | 5,000 Megohms min | |
| Connector |
|---|
| Female thread |
| Male center pin |
Part Number:
EZ-NMC100
