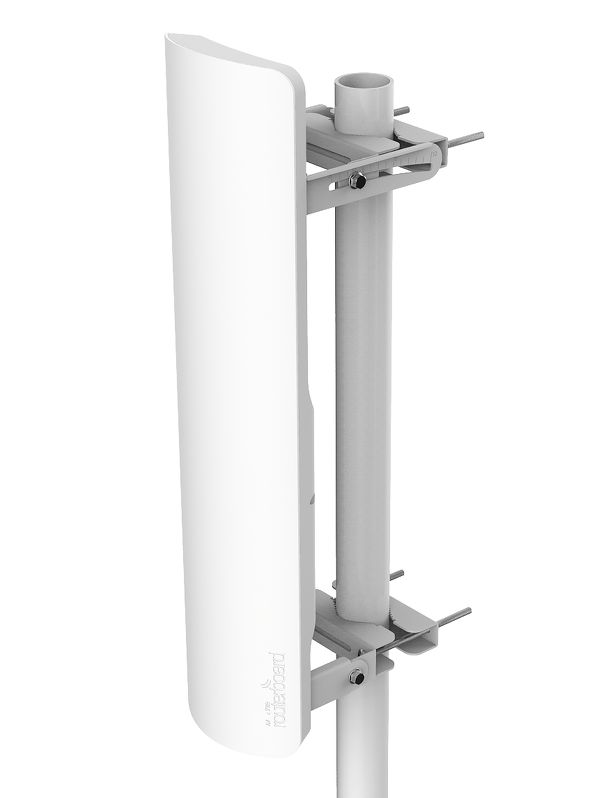

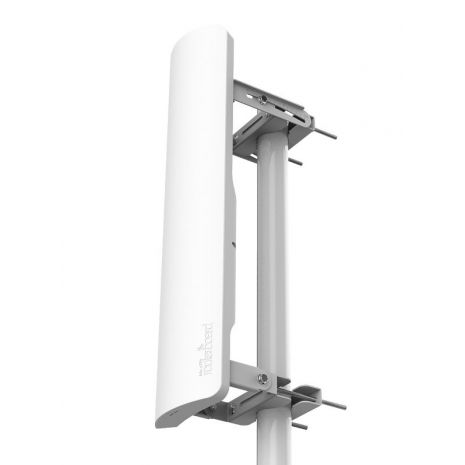

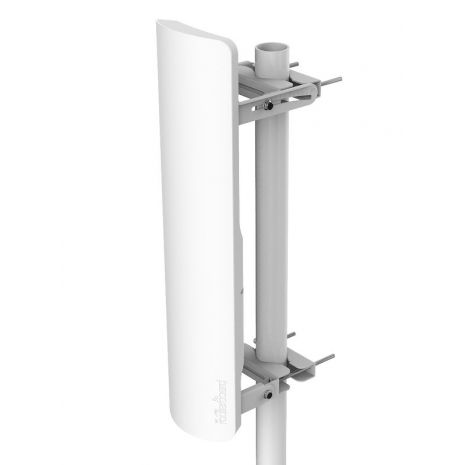

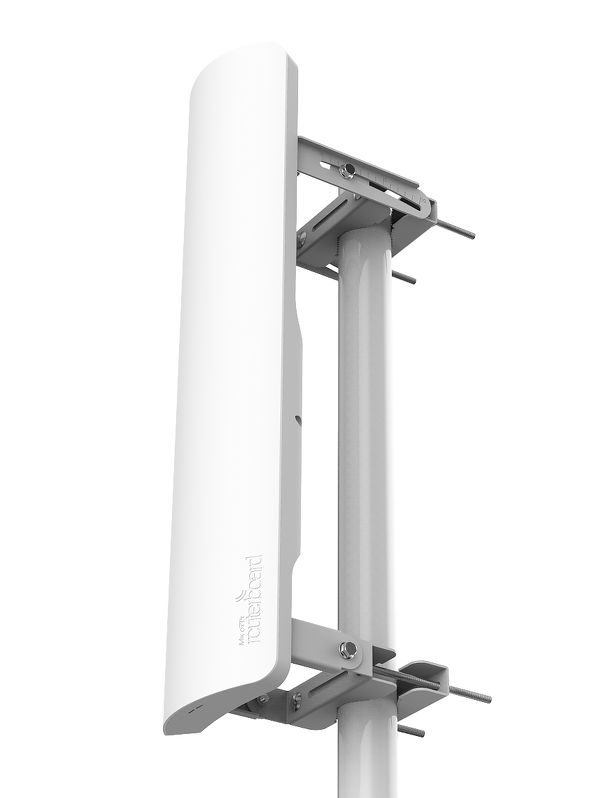

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

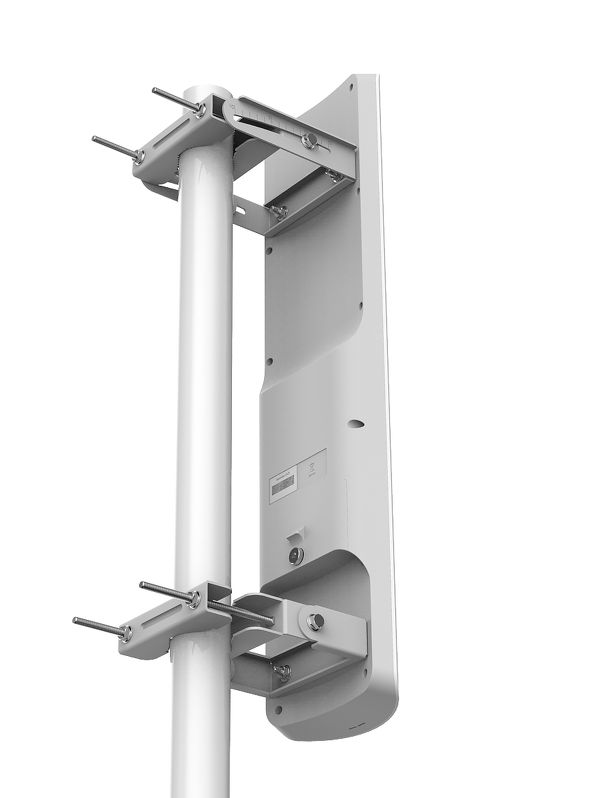

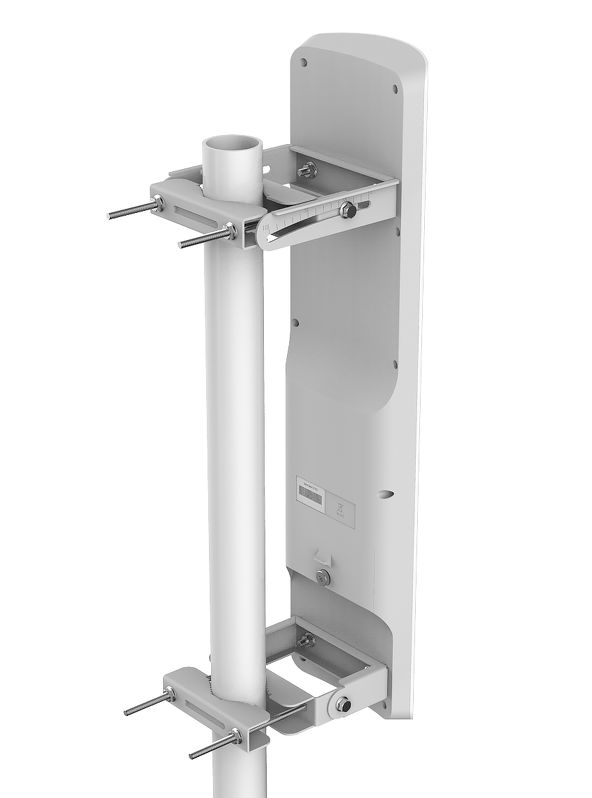

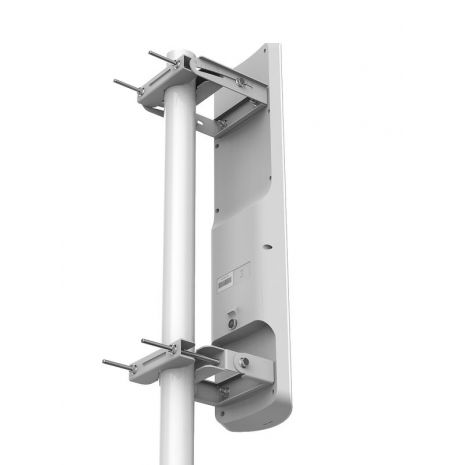

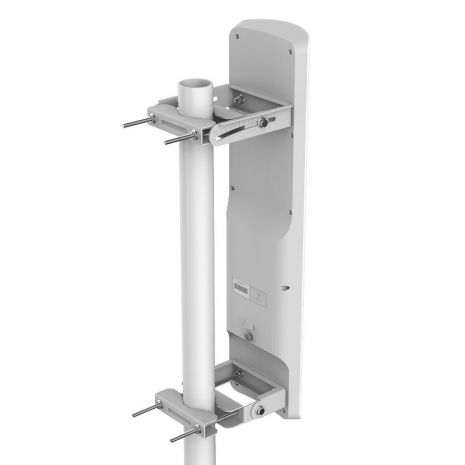

The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.
| Details | |
|---|---|
| Product code | MTAS-5G-19D120 |
| Antenna gain DBI | 19 |
| Frequency Range | 5.17 - 5.825 GHz |
| Polarization | Vertical and horizontal |
| Beamwidth | 120 deg (azimuth) 5 deg (elevation) |
| VSWR | 1.43 typ, 1.8 max |
| Port to Port Isolation | >40 dB min |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >30 dB |
| Diameter x Depth | 152 x 598 x 78 mm |
| Weight | 1270 g |

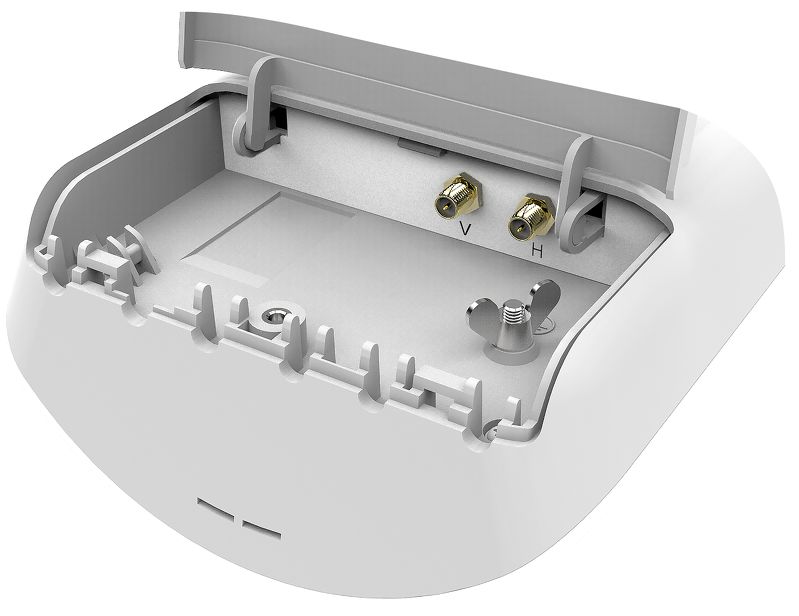

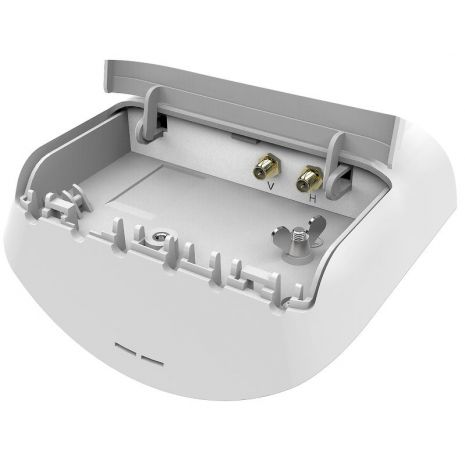

| Connector | two RP-SMA |
- Assembly instructions : mANT_19s_assembly-151130141941.pdf
- Brochure : mANTBox_series-151211121517.pdf
- Purchase questions: email sales
- RouterOS software manual
Part Number:
MTAS-5G-19D120
