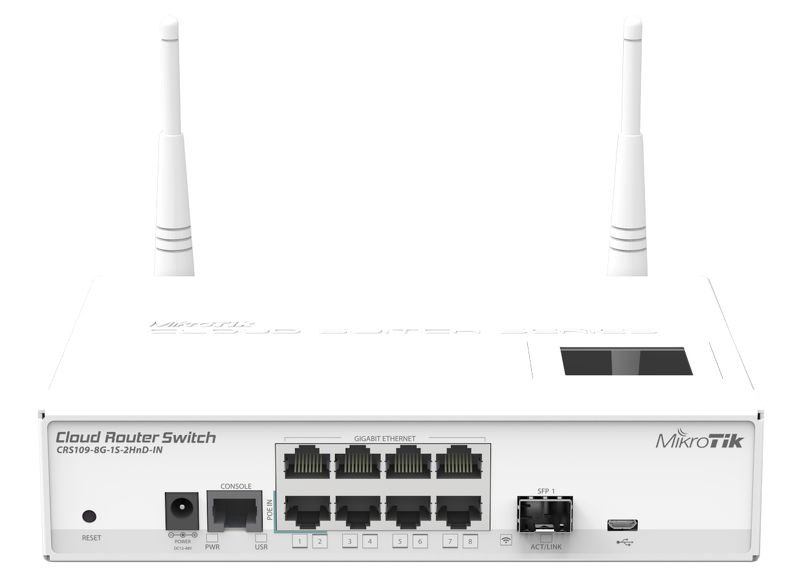

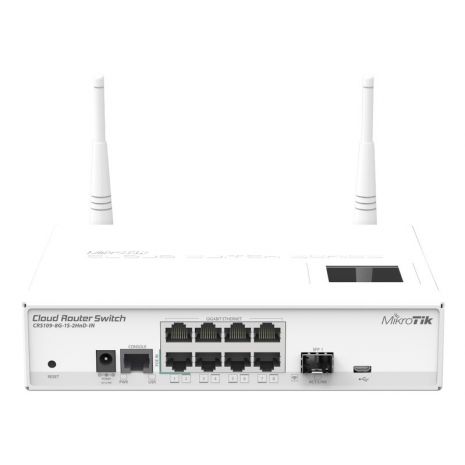

Το Cloud Router Switch 109-8G-1S-2HnD-IN είναι το νέο "μικρού μεγέθους χαμηλής τιμής" μέλος της CRS σειράς μας. Έρχεται με οκτώ Gigabit Ethernet ports και πανίσχυρο 1000mW 2.4GHz wireless. Το προϊόν υποστηρίζει 10-57V και είναι συμβατό με 802.3af/at!
Η CRS σειρά μας συνδιάζει τα καλύτερα χαρακτηριστικά ενός πλήρως λειτουργικού router και ένα Layer 3 switch και βασίζεται στο γνωστό μας RouterOS.
Όλα τα εξιδεικευμένα χαρακτηριστικά διαχείρισης Switch είναι διαθέσιμα σε ένα ειδικό Switch menu, αλλά αν θέλετε, τα ports μπορούν να φύγουν από την κεντρική διαχείριση του switch, και να χρησιμοποιηθούν για σκοπούς routing.
| Details | |
|---|---|
| Product code | CRS109-8G-1S-2HnD-IN |
| CPU nominal frequency | 600 MHz |
| SFP DDMI | yes |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 8 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9344-DC3A-R |
| Wireless standards | 802.11b/g/n |
| Number of USB ports | 1 |

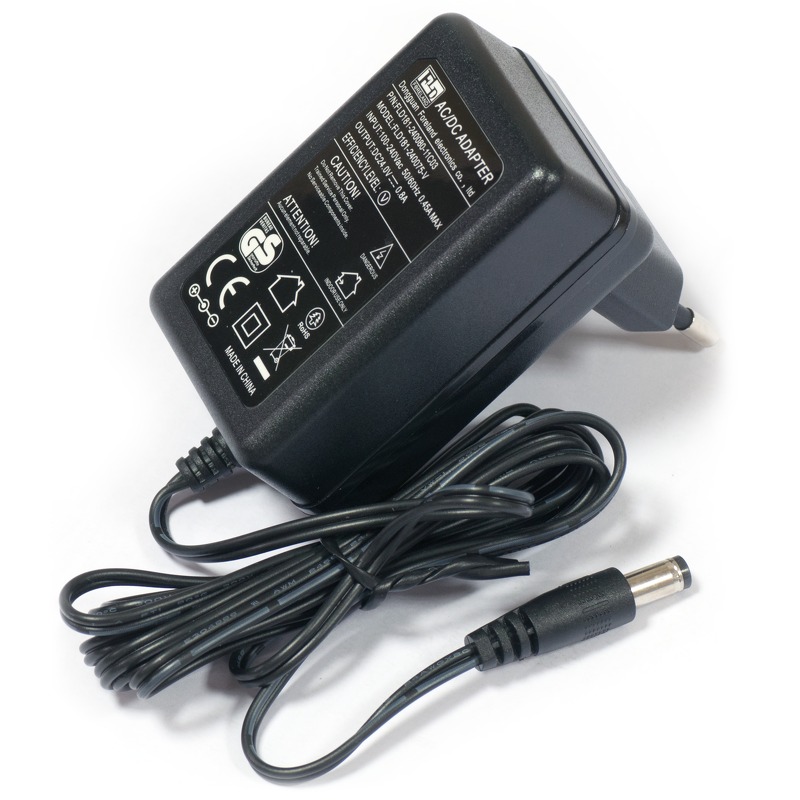

| Power Jack | 1 |
| 802.3af support | yes |
| PoE out | No |
| PoE in | Yes |
| Supported input voltage | 8 V - 57 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 200x145x45mm |
| Operating System | RouterOS |
| Operating temperature range | -35C to +65C tested |
| License level | 5 |
| Antenna gain DBI | 4 |
| Current Monitor | Yes |
| CPU | AR9344-DC3A-R |
| Max Power consumption | 13W |
| SFP ports | 1 |
| SFP+ ports | None |

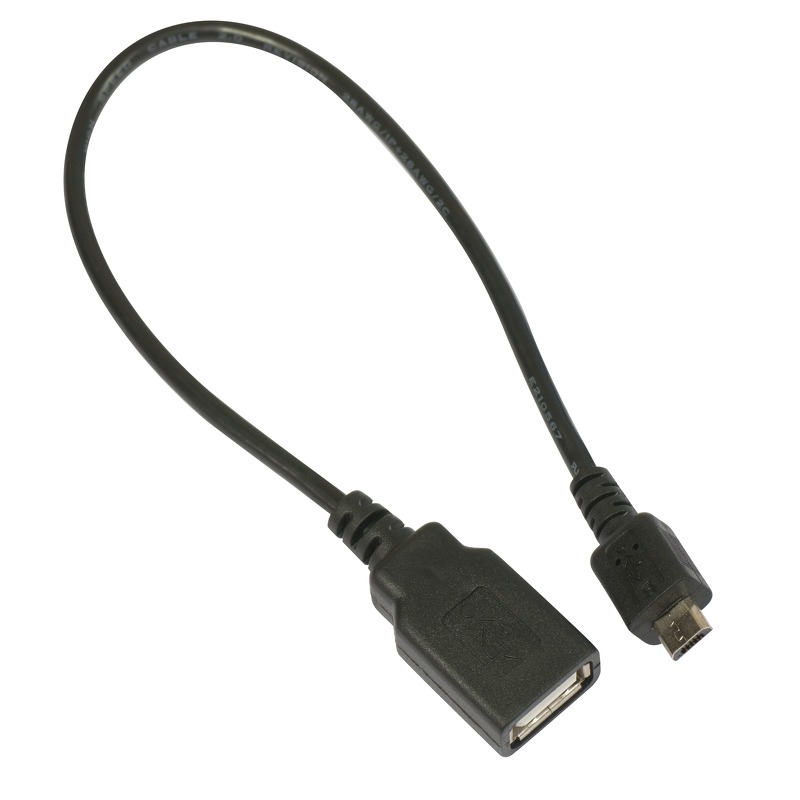

| USB slot type | microUSB type AB |
| Number of chains | 2 |
| Serial port | RJ45 |
Wireless specifications
| 2.4 GHz | ||
|---|---|---|
| TX | RX | |
| 1MBit/s | 29 | -97 |
| 11MBit/s | 28 | -90 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -76 |
| MCS0 | 30 | -96 |
| MCS7 | 23 | -73 |
| CRS109-8G-1S-2HnD-IN | AR9344 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
Switching results
| CRS109-8G-1S-2HnD-IN | |||||||
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13,392.9 | 6,857.1 | 2,114.7 | 8,661.7 | 731.5 | 8,883.0 |
| Switching | Non blocking Layer 2 capacity | 13,392.9 | 13,714.3 | 2,114.7 | 17,323.3 | 731.5 | 17,765.9 |
| Switching | Non blocking Layer 1 throughput | 13,392.9 | 9,000.0 | 2,114.7 | 9,000.0 | 731.5 | 9,000.0 |
| Switching | Non blocking Layer 1 capacity | 13,392.9 | 18,000.0 | 2,114.7 | 18,000.0 | 731.5 | 18,000.0 |
Part Number:
CRS109-8G-1S-2HnD-IN
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: none
Gigabit Ports:
Gigabit Ports: 8
SFP 1G Ports:
SFP 1G Ports: 1
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: 2
CPU:
CPU: AR9344
Wireless Chip Model:
Wireless Chip Model: AR9344
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence: Level5
USB:
- USB: Yes
Memory cards:
- Memory Cards: No
Integrated Wireless:
- Integrated Wireless: Yes
Voltage Monitor:
- Voltage Monitor: Yes
Temperature sensor:
- Temperature sensor: Yes
Serial Port:
- Serial Port: Yes
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: 802.11b
- Wireless standards: 802.11g
- Wireless standards: 802.11n
