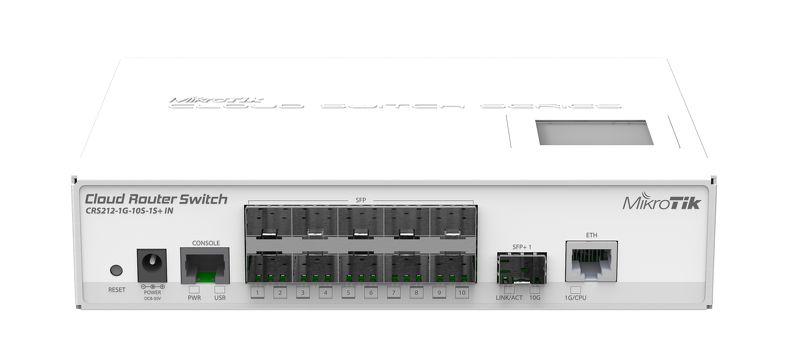

Το Cloud Router Switch 212-1G-10S-1S+IN είναι το νέο "μικρού μεγέθους χαμηλής τιμής" μέλος της CRS σειράς μας.
Έρχεται με ένα Gigabit Ethernet RJ45 port, δέκα SFP θήκες και μια 10G SFP+ θήκη, αλλά και LCD panel και serial port (RJ45).

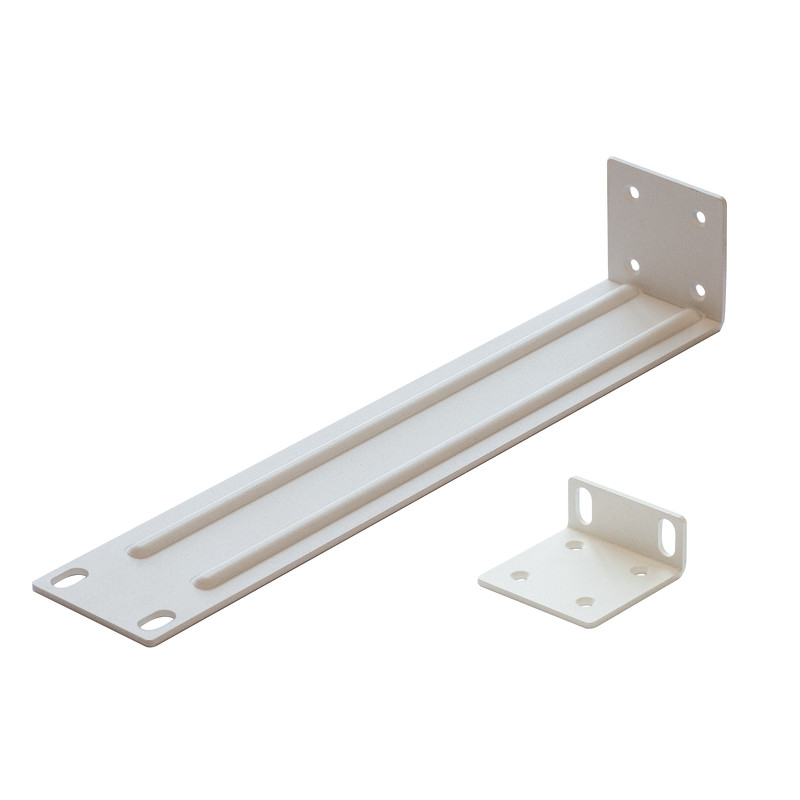

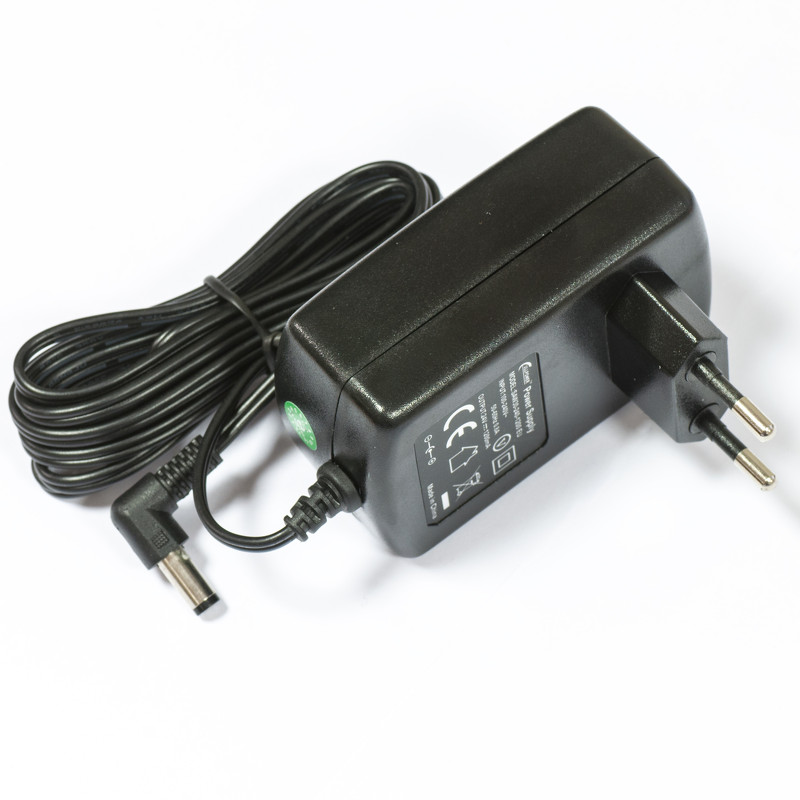

Το προϊόν περιλαμβάνει desktop κουτί και power supply. Ειδικά "αυτιά" δίνονται για τοποθέτηση της μονάδας σε rack.
Η CRS σειρά μας συνδιάζει τα καλύτερα χαρακτηριστικά ενός πλήρως λειτουργικού router και ένα Layer 3 switch και βασίζεται στο γνωστό μας RouterOS.
Όλα τα εξιδεικευμένα χαρακτηριστικά διαχείρισης Switch είναι διαθέσιμα σε ένα ειδικό Switch menu, αλλά αν θέλετε, τα ports μπορούν να φύγουν από την κεντρική διαχείριση του switch, και να χρησιμοποιηθούν για σκοπούς routing.
| Details | |
|---|---|
| Product code | CRS212-1G-10S-1S+IN |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| Power Jack | 1 |
| PoE out | No |
| PoE in | No |
| Supported input voltage | 8 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 200x144x47mm |
| Operating System | RouterOS |
| Operating temperature range | -35C to +65C tested |
| License level | 5 |
| Current Monitor | Yes |
| CPU | QCA8519-AC2C |
| Max Power consumption | 20W |
| SFP ports | 10 |
| SFP+ ports | 1 |
| Serial port | RJ45 |
| CRS212-1G-10S-1S+IN | QCA8519 Max possible throughput test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 26.7 | 324.2 | 28.6 | 117.1 | 24.5 | 12.5 |
| Bridging | 25 bridge filter rules | 21.4 | 259.9 | 22.4 | 91.8 | 22.2 | 11.4 |
| Routing | none (fast path) | 23.0 | 279.3 | 23.5 | 96.3 | 24.5 | 12.5 |
| Routing | 25 simple queues | 19.6 | 238.0 | 22.4 | 91.8 | 21.0 | 10.8 |
| Routing | 25 ip filter rules | 7.9 | 95.9 | 10.4 | 42.6 | 10.8 | 5.5 |
Switching results
| CRS212-1G-10S-1S+IN | |||||||
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 31,250.0 | 16,000.0 | 4,934.2 | 20,210.5 | 1,706.8 | 20,726.9 |
| Switching | Non blocking Layer 2 capacity | 31,250.0 | 32,000.0 | 4,934.2 | 40,421.1 | 1,706.8 | 41,453.8 |
| Switching | Non blocking Layer 1 throughput | 31,250.0 | 21,000.0 | 4,934.2 | 21,000.0 | 1,706.8 | 21,000.0 |
| Switching | Non blocking Layer 1 capacity | 31,250.0 | 42,000.0 | 4,934.2 | 42,000.0 | 1,706.8 | 42,000.0 |
Part Number:
CRS212-1G-10S-1S+IN
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: none
Gigabit Ports:
Gigabit Ports: 1
SFP 1G Ports:
SFP 1G Ports: 10
SFP 10G Ports:
SFP 10G Ports:1
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: none
CPU:
CPU: QCA8519
Wireless Chip Model:
Wireless Chip Model: none
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence: Level5
USB:
- USB: No
Memory cards:
- Memory Cards: No
Integrated Wireless:
- Integrated Wireless: No
Voltage Monitor:
- Voltage Monitor: Yes
Temperature sensor:
- Temperature sensor: Yes
Serial Port:
- Serial Port: Yes
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: none
