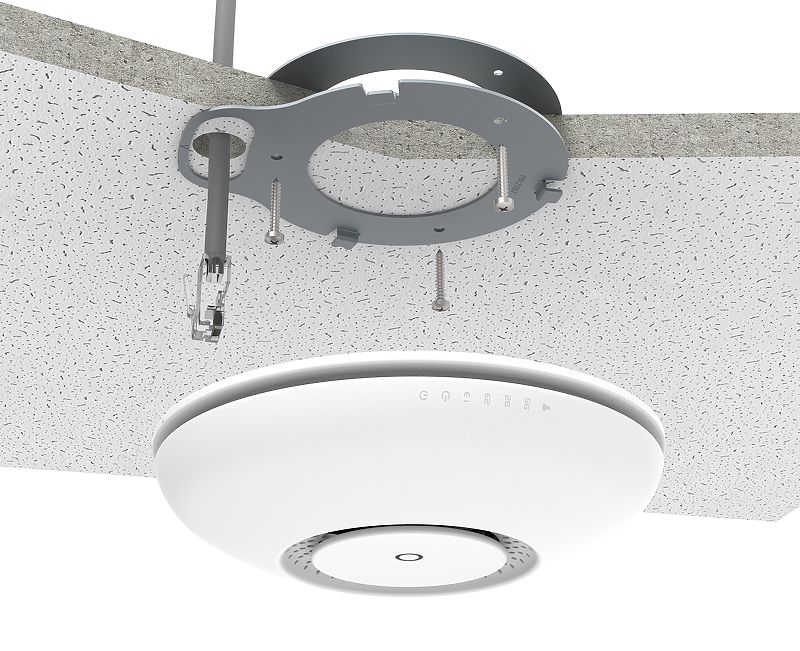

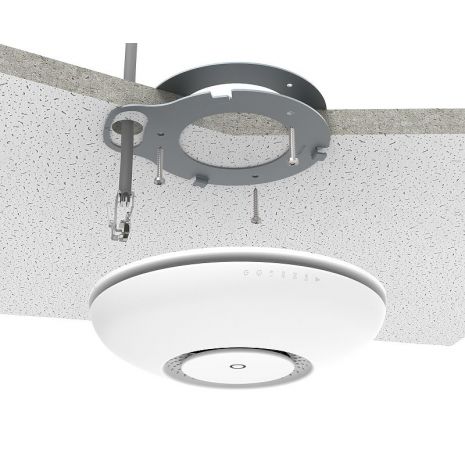

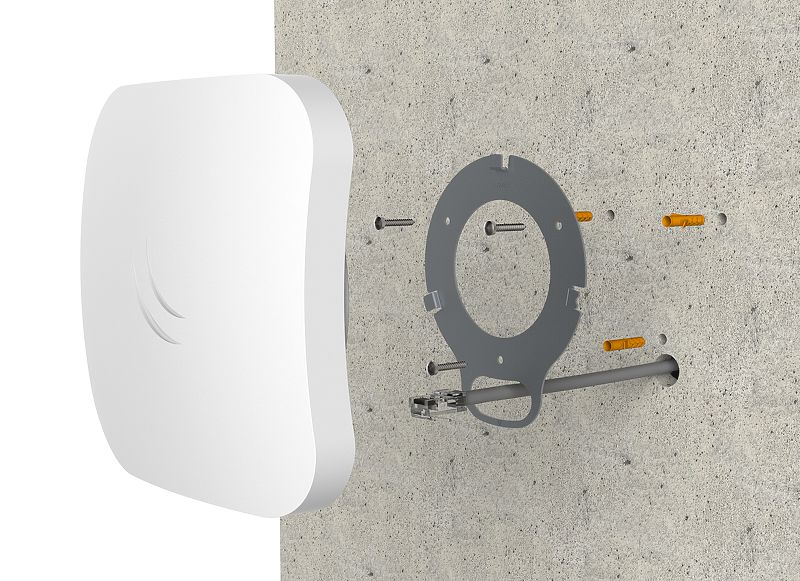

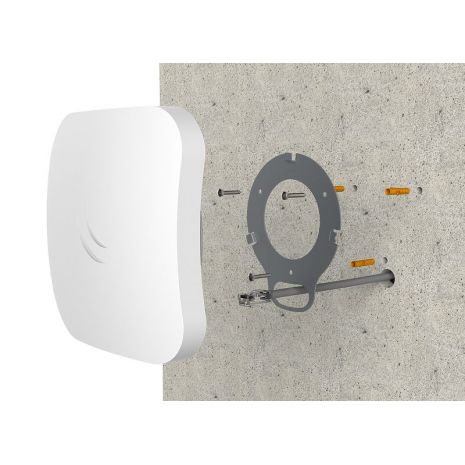

Dual-band 2.4 / 5GHz wireless access point για τοποθέτηση σε οροφή ή τοίχο με δύο Gigabit Ethernet ports (το ένα με PoE output) και 802.11ac υποστήριξη
Το MikroTik cAP ac είναι ένα πολύ ικανό και πανίσχυρο ασύρματο access point που δείχνει πολύ ωραίο και σε τοίχο και σε οροφή. Η ταυτόχρονη διπλής συχνότητας ασύρματη εκπομπή υποστηρίζει dual chain 2 GHz και 5 GHz σε 802.11ac και τις προηγούμενες τυποποιήσεις, και παρέχει κάλυψη 360 μοιρών γύρο του.
Αν και η συσκευή υποστηρίζει repeater mode, τα δύο Ethernet ports σας δίνει την δυνατότητα να επεκτείνετε το δίκτυό σας μέσω καλωδίου, ακόμη κι αν χρειάζεται PoE τροφοδοσία, μιας και το cAP ac υποστηρίζει 802.3af/at PoE είσοδο στο πρώτο port, και passive PoE output στο δεύτερο port.
- Το cAP ac (International) υποστηρίζει το εύρος συχνοτήτων 2412-2484MHz και 5150MHz-5875MHz (Το εύρος συχνοτήτων μπορεί να περιορίζεται από τη νομοθεσία της κάθε χώρας).
| Details | |
|---|---|
| Product code | RBcAPGi-5acD2nD |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |

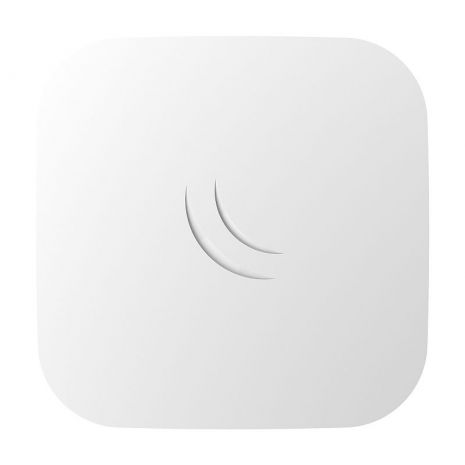

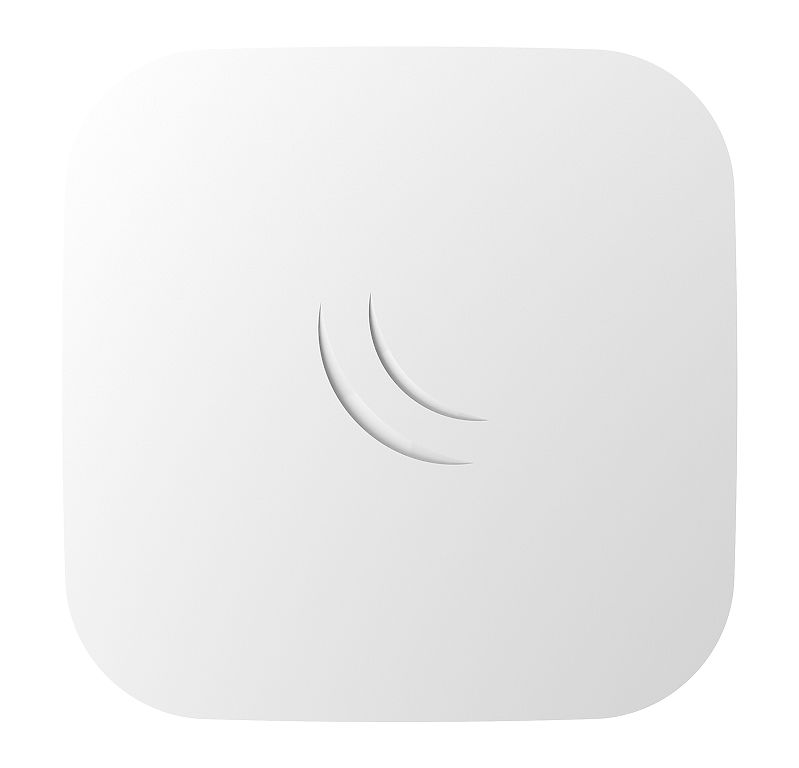

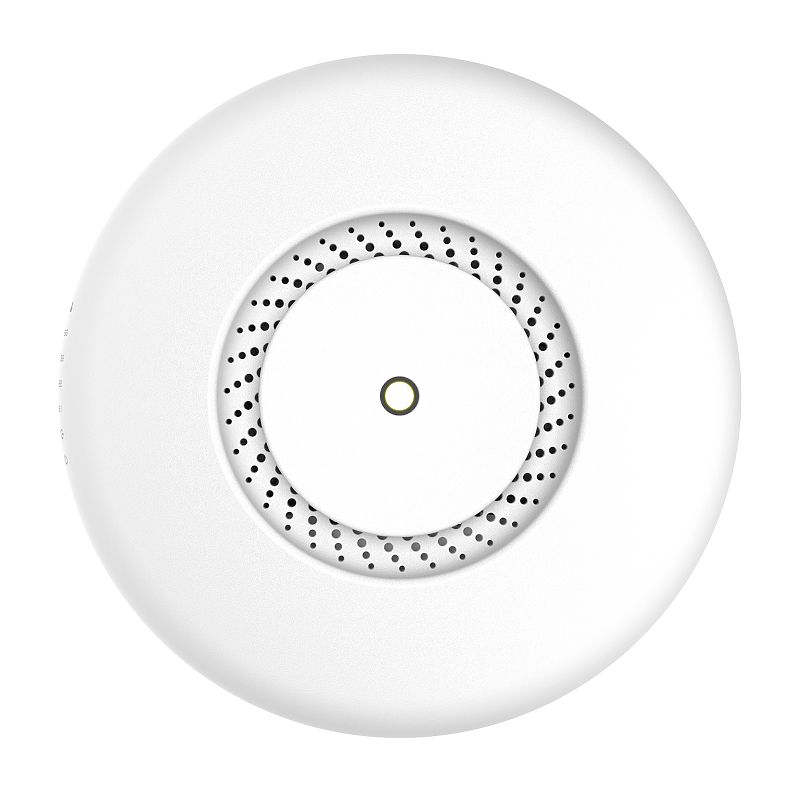

| Dimensions | Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 to 50° C |
Powering
| Details | |
|---|---|
| Max Power consumption | 13W |
| PoE in | 802.3af/at |
| PoE out | Passive PoE |
| PoE in input Voltage | 17-57 V |
| Number of DC inputs | 1 (PoE-IN) |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
Ethernet test results
| RBcAPGi-5acD2nD | IPQ-4018 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1484.8 | 760.2 |
| Bridging | 25 bridge filter rules | 162.1 | 1968.5 | 352.9 | 1445.5 | 359.2 | 183.9 |
| Routing | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1488 | 761.9 |
| Routing | 25 simple queues | 162.5 | 1973.4 | 469.9 | 1924.7 | 506.3 | 259.2 |
| Routing | 25 ip filter rules | 162.2 | 1969.8 | 240.8 | 986.3 | 242.9 | 124.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| RBcAPGi-5acD2nD | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
