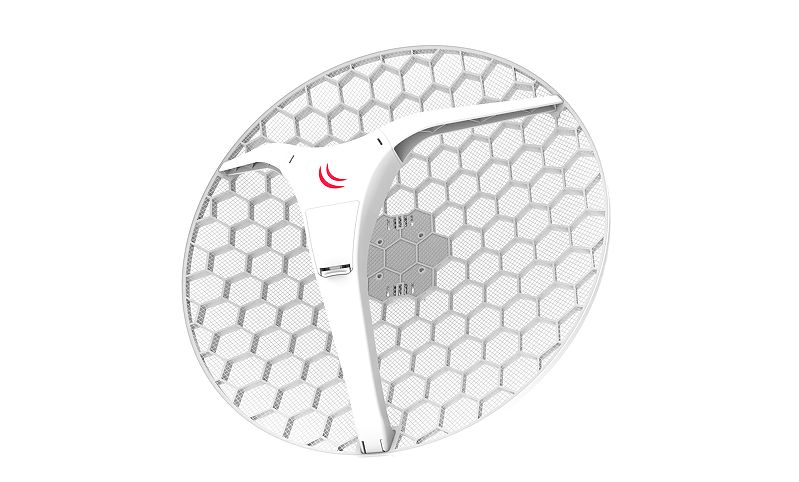

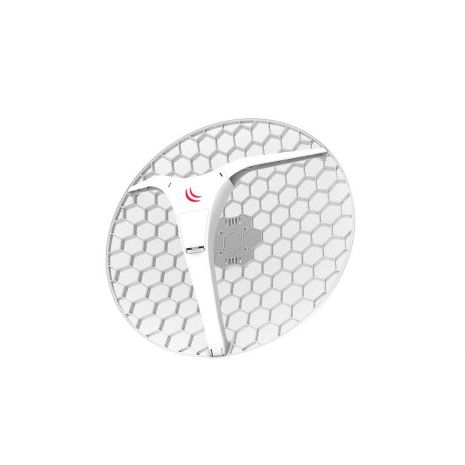

Η LHG XL HP5 είναι μια 5GHz 802.11 a/n ασύρματη συσκευή με μια ενσωματωμένη dual polarization 27 dBi grid antenna και 630mW TX output power, σχεδιασμένη να φτάνει έως και 40km σε point-to-point εγκαταστάσεις με πλήρη ταχύτητα.
Ο grid σχεδιασμός διασφαλίζει την προστασία από τον αέρα, και το γεγονός οτι το στοιχείο της κεραίας έχει ενσωματωθεί στην ασύρματη μονάδα μειώνει τις απώλειες των καλωδίων.
Υπάρχουν διαθέσιμες δύο εκδόσεις.
LHG XL HP5-US (USA) είναι κλειδωμένη από το εργοστάσιο για τις συχνότητες 5170-5250MHz και 5725-5835MHz. Αυτό το κλείδωμα δε μπορεί να αφαιρεθεί.
LHG XL HP5 (International) υποστηρίζει το εύρος των 5150MHz-5875MHz.
General
| Details | |
|---|---|
| Product code | RBLHG-5HPnD-XL |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 550 x 245 mm; |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 to 70° C |
Powering
| Details | |
|---|---|
| Max Power consumption | 7W |
| Number of DC inputs | 1 |

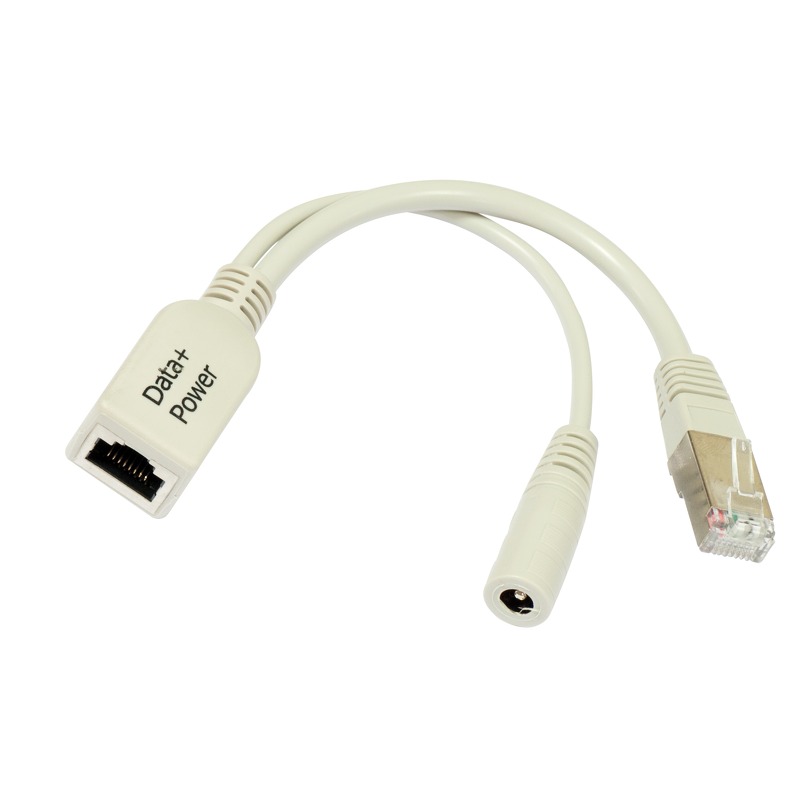

| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
Wireless
| Details | |
|---|---|
| Antenna gain dBi for 5 GHz | 27 |
| Number of chains | 2 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz standards | 802.11a/n |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless specifications
| 5 GHz | |||
|---|---|---|---|
| Transmit (dBm) | Receive Sensitivity | ||
| 6MBit/s | 28 | -96 | |
| 54MBit/s | 25 | -80 | |
| MCS0 | 28 | -96 | |
| MCS7 | 24 | -75 | |
Ethernet test results
| RBLHG-5HPnD-XL | AR9344 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBLHG-5HPnD-XL
Προμηθευτές:
MikroTik
