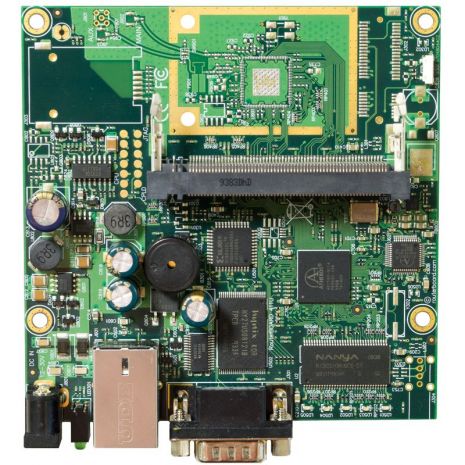

-1.jpg "MikroTik Routerboard 411, 300MHz CPU, 32MB RAM, 1xEthernet, miniPCI, power jack, serial port RouterOS L3")
The RB411 is designed with size and cost in mind. This small device will fit perfectly into small CPE devices or even run your wireless backup link. The powerful Atheros CPU gives it the ability to do all of this and more.
The RB411 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Product specifications
| Details | |
|---|---|
| Product code | RB411 |
| CPU nominal frequency | 300 MHz |
| CPU core count | 1 |
| Size of RAM | 32 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | 1 |
| MiniPCI slots | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 8 V - 28 V |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. +70°C tested |
| License level | 3 |
| CPU | AR7130 |
| Serial port | RS232 |
| Storage type | NAND |
| Storage size | 64 MB |
Ethernet test results
| RB411 | AR7130 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 8.1 | 98.6 | 23.5 | 96.3 | 97.3 | 49.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.6 | 23.5 | 96.3 | 41.0 | 21.0 |
| Routing | none | 8.1 | 98.6 | 23.5 | 96.3 | 79.4 | 40.7 |
| Routing | 25 simple queues | 8.1 | 98.6 | 23.5 | 96.3 | 67.8 | 34.7 |
| Routing | 25 ip filter rules | 8.1 | 98.6 | 23.5 | 96.3 | 24.7 | 12.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RB411
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: 1
Gigabit Ports:
Gigabit Ports: none
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
mPCI: 1 mPCI
Antenna Chains:
Antenna Chains: none
CPU:
CPU: AR7130
Wireless Chip Model:
Wireless Chip Model: none
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence: Level3
USB:
- USB: No
Memory cards:
- Memory Cards: No
Integrated Wireless:
- Integrated Wireless: No
Voltage Monitor:
- Voltage Monitor: No
Temperature sensor:
- Temperature sensor: No
Serial Port:
- Serial Port: Yes
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: none
