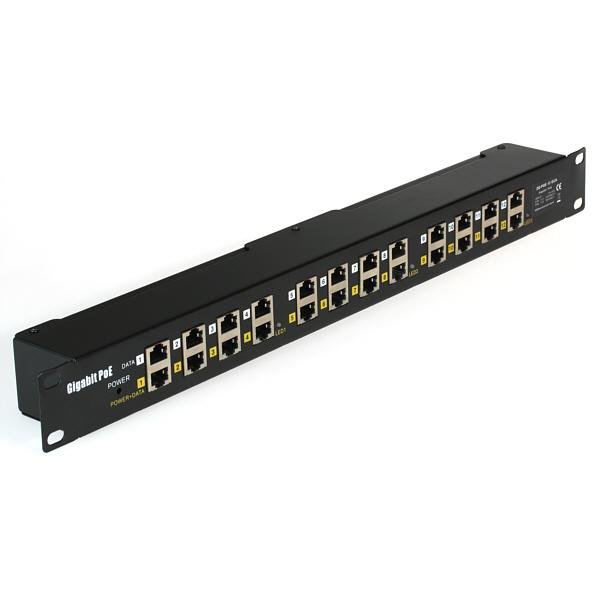

12 port Gigabit PoE injector panel with metal case, 1U high standard rack mount, Shielded, 2x input power jacks
Professional panel which integrates 12 gigabit passive POE injectors and so it is suitable for powering up to 12 devices with integrated PoE splitter. Outup power range 24 - 57V.
Very appropriate solutions to power wireless devices, IP phones, IP cameras, etc. with gigabit ethernet. In case that powered device does not have a PoE extractor can be combined with passive POE splitter.
LED indicates port currents.
• 0-20mA (no signal
• 20-400mA (gree led)
• >400mA (red led)
The main advantages of this device are :
• 19" rack design
• LED control for visual monitoring of traffic
• outgoing ground component for surge filtering on the back panel
• reversible insurance against electric current fluctuation (OCP protection 650 mA) on each port
• 2x power input connectors (2.1 mm jack, max 60W each)
Specifications
LAN port 12 x RJ45, 12 x RJ45 POE 10/100/1000 Mbps
Power supply (V) 2x 2.1mm jacks
Operational temperature (°C) 0-40
Dimension (mm) 482.6 mm x 44.3 mm x 52 mm
Output power (V) depends on used DC power adapter
Input voltage (V) 24-57 (max 120W)
