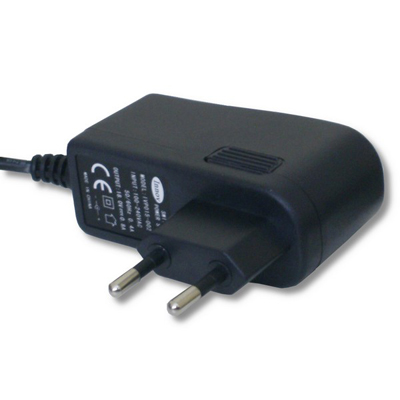

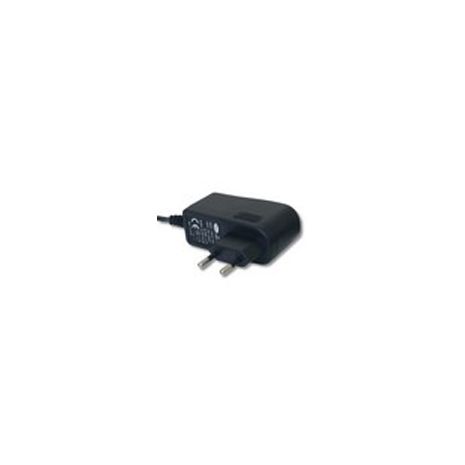

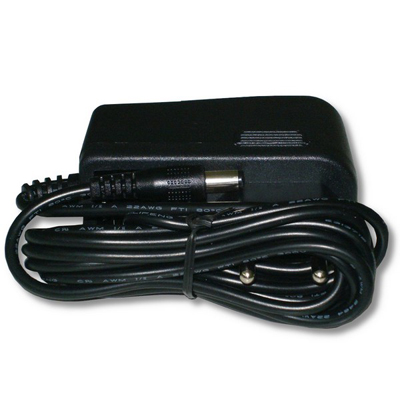

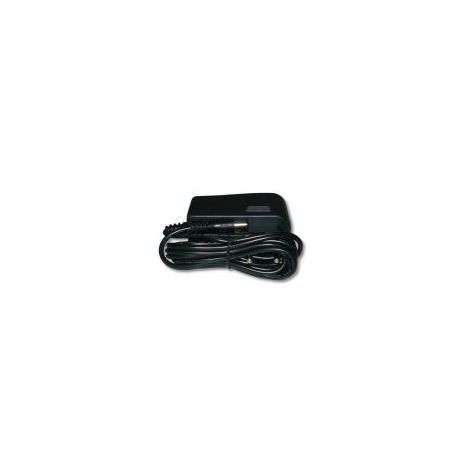

18V AC adapter :
Output: 18V DC / 800mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Compact size switching adapter, saves space on power strips.
Origin: China
| Σύνδεσμοι Προϊόντος: | ||
|---|---|---|
 CE EMC |
CE LVD |
|
| Description | Values |
|---|---|
| Input Condition | AC100~240V 50/60Hz 0.6A max |
| Input Rated Voltage | 100Vac~200Vac |
| Input Voltage Rate | 90Vac~264Vac |
| Input Rated Frequency | 50/60Hz |
| Input Frequency Range | 47Hz~63Hz |
| Input Current | 0.6A Max |
| Input Inrush Current | 30A Max |
| Input No Load Power Consumption | 0.5 Watt Max @ 115Vac/230Vac |
| Efficiency | 80% Min |
| Rated Output Voltage & Current | 18v/0.8A |
| Output Line Regulation | +-1% |
| Output Load Regulation | +-5% |
| Output Over Shoot | 10% Max |
| Output Ripple and Noise | 1% Max |
| Output Rising Time | 20ms Max @ 115Vac |
| Output Hold-Up Time | 8ms Min @ 230Vac |
| Protection | OCP OVP SCP OPP |
| Dielectric Withstand Voltage | 3KV 5mA 60s |
| Leakage Current | 0.25mA @ 230Vac |
| DC Plug Specification | 5.5x2.5x11mm |
| Dimension | 35x73x53mm |
| Operating Temperature Range | 0oC~40oC |
| Storage Temperature Range | -20oC~+8540oC |
Part Number:
IVP015-002
