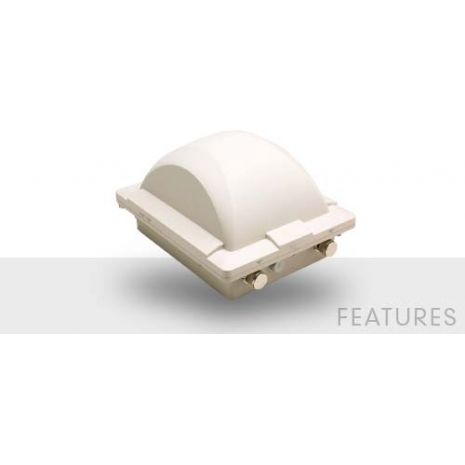

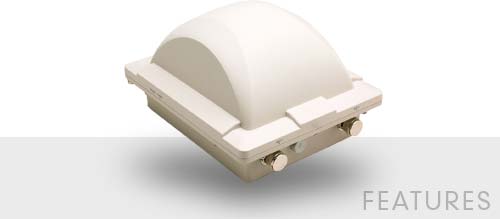

The Fastest 802.11n Outdoor Wi-Fi Access Point There is, Delivering Range, Reliability with Dynamic Beamforming
The first concurrent, dual-band (2.4/5Ghz) outdoor 802.11n access point, the ZoneFlex 7762 is in a class by itself. Ideal for enterprises looking to extend their wireless network outdoors or service providers that want to build multimedia hotspots and offload bulky data traffic from 3G networks, the ZoneFlex 7762 delivers the industry’s highest performance at range.
The ZoneFlex 7762 uniquely combines dynamic beamforming, adaptive meshing and the power of 802.11n to enable a new level of outdoor performance at the lowest cost. Built to withstand the harshest of outdoor conditions, Ruckus designed the ZoneFlex 7762 with the flexibility to function as a standalone AP or as a managed device, using the same wireless controller as its indoor Smart Wi-Fi products. If no Ethernet cabling is available, the outdoor AP meshes seamlessly with the indoor ZoneFlex 7962. Unprecedented performance enables connections of 150Mbps or more between mesh nodes at distances of up to 300 meter or more. In addition, unlike any other outdoor Wi-Fi device today, the ZoneFlex 7762 provides advanced interference avoidance and rejection to ensure the highest resilience for both client and inter-node mesh connections. Now customers have a simple to use, deploy – indoor/outdoor – Smart Wi-Fi environment that provides
extended range, simple deployment, reliable connectivity and consistent performance at range. Now THAT’S interesting.
Integrates BeamFlex™ Smart Antenna Technology
- Enables consistent, high performance, extended coverage and multimedia support
- Automatic RF tuning adapts to constant changes in the environment with no client configuration needed
- Minimizes inter-nodal hops that degrade performance
- Results in fewer APs, more satisfied users
Provides Enormous Areas of Coverage
- Perfect for outdoor pool areas at hotels and resorts
- Ideal for schools, stadiums, and other outdoor sports facilities
- Excellent for enterprises that have shipping docks and other outdoor areas
- Automatic interference avoidance, optimized for high-density environments
Hardened enclosure for harsh outdoor environments
- IP-67 water and dust proof plastic enclosure with flexible wall, pole or ceiling mounting options ensures that no distortion of WiFi signals is introduced
- Built-in heater for cold climate (-40° C)
- Two external N-type antenna connectors
- Standard 802.3af/at Power over Ethernet (PoE), Ruckus custom high power PoE injector included, standard 802.3af output for surveillance camera
True Plug-And Play Multimedia Wireless LAN (WLAN) with Unmatched Ease of Use
- Quality of Service technology provides 4 queues per client station
- BeamFlex and Quality of Service technology deliver 600 Mbps of user throughput (300 Mbps/radio) for 20 concurrent voice calls, 100 simultaneous data users or 20 Mbps of guaranteed user throughput for over 100 meters (line of sight)
- Web-based wizard supports configuration by non-wireless expert through ZoneDirector
- Secure, sophisticated WLAN can be created in minutes
- No RF tuning or client configuration needed
Differentiated services with multiple SSIDs
- Up to 16 BSSIDs with unique QoS and security policies can be configured
- Enables hot-zone operators to easily offer tiered services to different user or traffic types
- Enterprises can differentiate guest, contractor, and employee access policies or segment different traffic types
- Captive portal and guest accounts
Wireless Broadband Access
Smarter Multimedia Hotspots (Smartspots)
Enterprise WLAN Extension
| Physical Characteristics | |
|---|---|
| Power | Power over Ethernet and 12VDC |
| Physical Size | 23.95cm (L), 19.55cm (W), 14.1cm (H) |
| Weight | 1900 grams (4.19 lbs) |
| Antenna | Internal software-configurable antenna array with directional and omni high-gain elements that provide over 4,000 unique antenna patterns |
| Ethernet ports |
|
| Environmental conditions |
|
| Power Draw |
|
| Performance and Supported Configurations | |
| Concurrent stations | Up to 100/radio |
| Target UDP throughput |
|
| Simultaneous Vo-Fi clients | up to 20 |
| Traffic Management and Quality of Services | |
| Classes of service | Voice, video, best effort and background |
| Software queues | Four per station |
| 802.11e | Supported |
| Automatic traffic classification | Automatic type of service tagging for multicast video packets |
| Rate Limiting | Supported |
| VLAN support | 802.1Q |
| Heuristic classification | Supported |
| Deployment | |
| Options |
|
| PoE Injector | Ruckus custom high power PoE injector included |
| Management | |
| Configuration | Web user interface, CLI (Telnet), SSH HTTP/S, SNMP statistics interface, TR-069 through FlexMaster |
| Statistics | LAN, wireless and associated stations (accessible via Web UI) |
| Auto AP Software updates | FTP or TFTP, remote auto available |
| Wi-Fi | |
| Standards |
|
| Supported data rates |
|
| Radio Chains | 3x3 |
| Spatial Streams | 2 |
| RF Power Output | 28 dBm/600 mW |
| Channelization | 20MHz and/or 40MHz |
| Frequency Band |
|
| Operating Channels |
|
| BSSID | Up to eight per radio (16 total) |
| Power Save | Supported |
| Wireless Security |
|
| Certifications |
|
| Product Ordering Information | |
| ZoneFlex 7762 Dual Band 802.11n Outdoor Access Point | |
| Model | 901-7762-XX01 |
| Description | Centrally managed concurrent dual band 802.11n outdoor access point |
| PLEASE NOTE: | When ordering you must specify the destination region by indicating -US, -EU, -UK, -CH, -UN, -AU, -UU or -IN instead of XX. |
