Control board ON / OFF / PWM - overlay TR

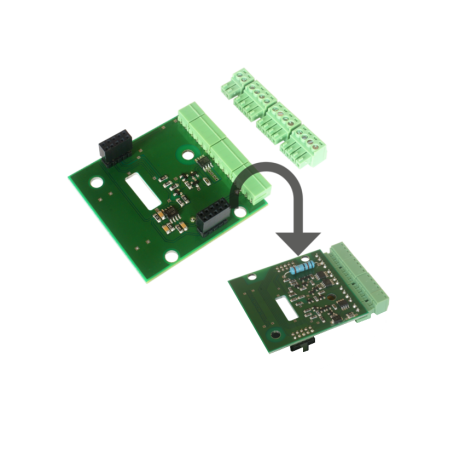

The board is designed as an overlay on Lan Controller in the second version and is located in the original housing. It is equipped with 4 high-power MOSFETs that can be used to power devices with power consumption 1-3a. By controlling the switching of the transistors of the panel LAN Controller (OUT1-4 output) can be switched on or off load, Power by supply input
- Maximum load is approximately 3A if we use 1 output or 1A it if we use all outputs at the same time.
- TR cap also includes 0.1ohma resistor to measure the current through in INP4 and voltage measurement in output INP5.
Technical Specification
Power from board TR supplies power Lan Controller, you need to disconnect other power, including POE!
Power from Lan Controller does not provide supply Board TR
- Number of control channels: 4
- Control functions: ON / OFF / PWM for power supply
- Voltage monitor: 0-36V
- Current monitor: 0-3ADC
- Supply voltage: 9-28V
- Maximum current control: 1A x 4 channels or 3A x 1 channel
Power from board TR supplies power Lan Controller, you need to disconnect other power, including POE!
Power from Lan Controller does not provide supply Board TR
Part Number:
LANKON-054
