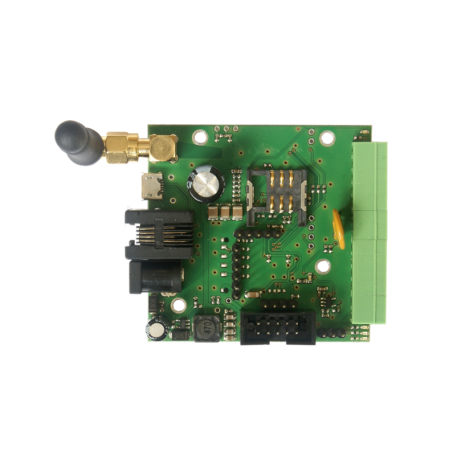

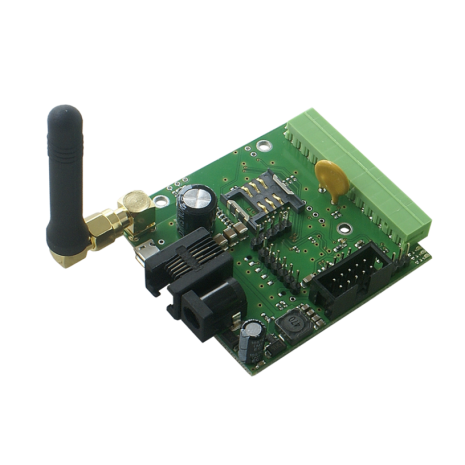

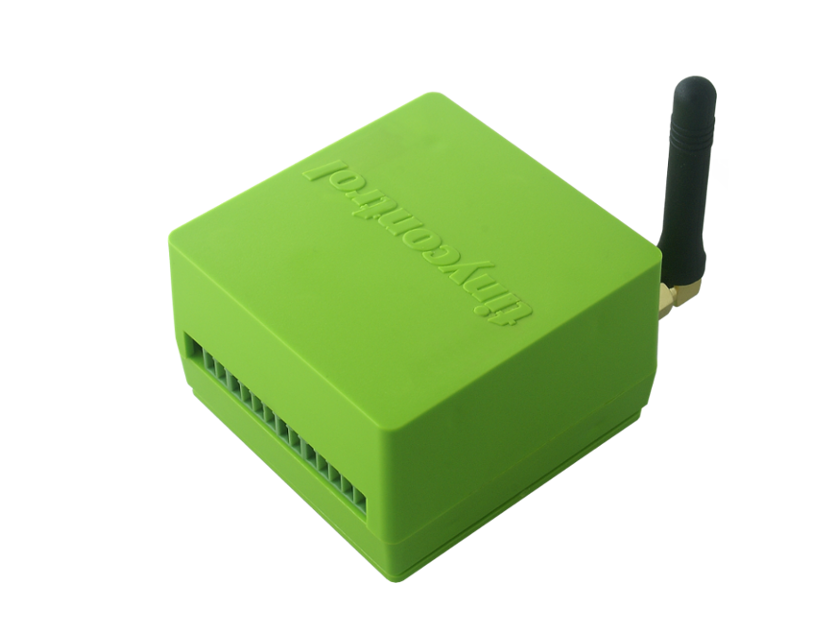

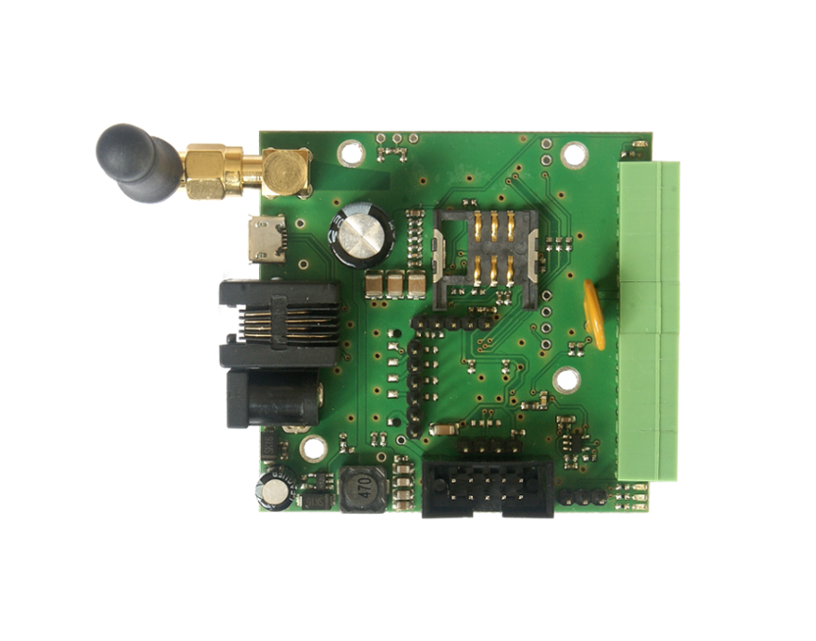

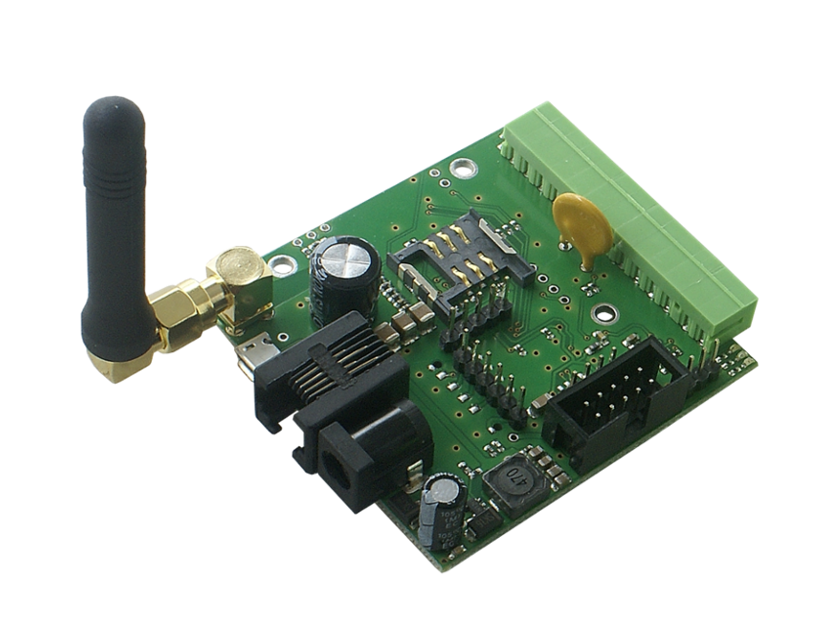

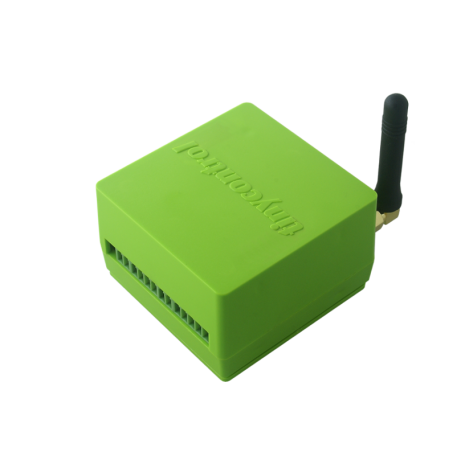

GSM v3 controller allow monitor by gsm network different phisical parameters and control remotely on/off 5 outputs. Control is done through SMS messages and monitoring can be run by SMS or gprs data transmission to internet server. Http datas can be sent for example to www.thingspeak.com server, where are not only collected but can be read as dynamically presented graphs.
MAIN APPLICATION
ISP
- the power supply control - notification of his disappearance
- voltage control backup battery
- temperature control or opening control server cabinet and remote reaction
Smart home
- Control on / off lighting or other devices remotely or by program
- a simple alarm system with notification
Instalations
- temperature control and possible notification, switching valve, switching relay, etc.
- supply voltage monitoring and if necessary automatic switching to backup source.
Monitoring for Environment and Agriculture
- Authorized commands sent password
- Remote voltage measurement
GSM v3 allow:
- management by SMS or USB (after connecting to computer)
- upgrade new firmware by USB port
- monitoring logic states, for example move sensors, position detectors
- supported sensors: PT1000, DS18B20, DTH22 (temperature and humidity)
- GSM module bands: 900 / 1800 / 1900 MHz
- SIM interface: 1,8 i 3V
- USB interface: virtual com port (115200, 8 bits, 1 bit stop, no parity , no bez parzystosci i kontroli przepływu
- other interfaces: 1-wire (RJ11), SPI, I2C, UART
- transistor out: 1x 1A/turn on supply voltage
- OC outs: 4x outs open collector type, transistor BC847B (45V-100mA)
- logical inputs: 4pcs , max 20V
- analog inputs: 3pcs, 2x napięcie 0-3,6V, 1x napiecię 0-36V
- temperature meas.: 1x PT1000, 1 wire sensors x8 DS18B20
- antena: attached
- input power supply: 6-28V DC, socket size 5,5mm
- power consumption: 0.3W without GSM transmission
- oerational temperature: -20 do +70 C
- board size: 68x60mm
- board weight: 57g
For easier configuration of GSM Controller we recommend use own software GSMControllerTools. It works with firmware 1_07 or later. Configuration can be proceed after installing USB drivers (only for Windows system, Linux don't need), checking port in System Manager (Linux work automatically) and establish connection. In newer firmware 1_15 and up there are available new Config Table features for raising events like relay closing, email or SMS after condition on chosen input is filled. This feature will not be available to setup by GSMControllerToosl, only by commands from console line (also in this software). Other console software we recommend is CuteCom for Linux and Mac OSX systems.
Instruction
Short manual GSMv3
Upgrade procedure GSMv3
Manual v1 for GSMv3
Technical Information
Firmware
Firmware GSMv3 1_02
Firmware GSMv3 1_07
Upgrade application
USB port driver
Linux GSMcontrollerTools PL v1.0
GSMcontrollerTools PL v1.0 Firmware GSMv3 1_11
Firmware GSMv3 1_12
Firmware GSMv3 1_15 Firmware GSMv3 1_16 Firmware GSMv3 1_21
Firmware GSMv3 1_25
Movie how to Upgrade GSM Controler
