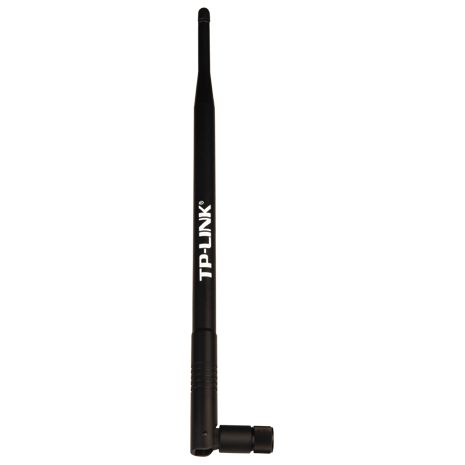

The TL-ANT2408CL 8dBi antenna is ideal for upgrading your wireless access points/routers. It is very easy to use, no configuration or software installation required.
Features:
- Compliant with 802.11b/g/n
- Easy to install and use
- 8dBi Omni-directional gain boosts your signal to a higher range
- RP-SMA Male connector, compatible with most wifi devices
Specifications:
| Frequency Range | 2.4GHz~2.4835GHz |
| Impedance | 50 Ohms |
| Gain | 8 dBi |
| VSWR | 1.92 : 1 Max |
| Polarization | Linear, Vertical |
| Beamwidth (HPBW) | Horizontal: 360° Vertical: 15° |
| Connector | RP-SMA Female |
| Radiation | Omni-directional |
| Application | Indoor |
| Dimensions (W x L mm) | 13 x 294 mm |
| Operating Temperature | -10℃~60℃ (14℉~140℉); |
| Storage Temperature | -40℃~80℃ (-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Safety, Emission and others | RoHS |
Part Number:
TL-ANT2408CL
Προμηθευτές:
TP-Link
