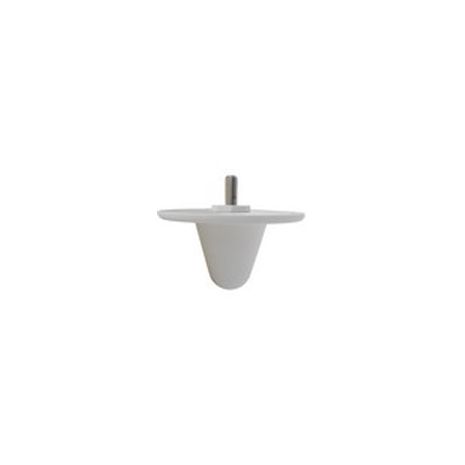

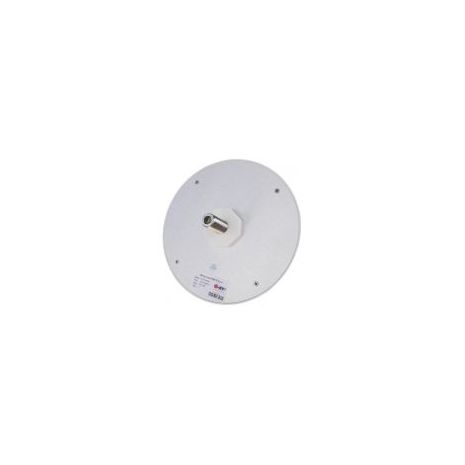

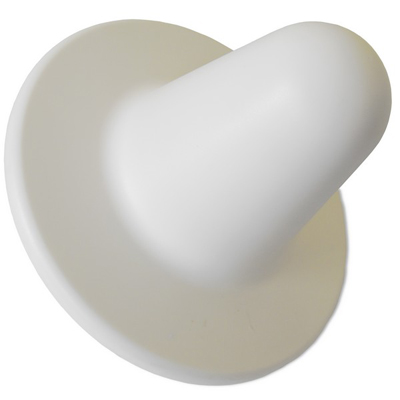

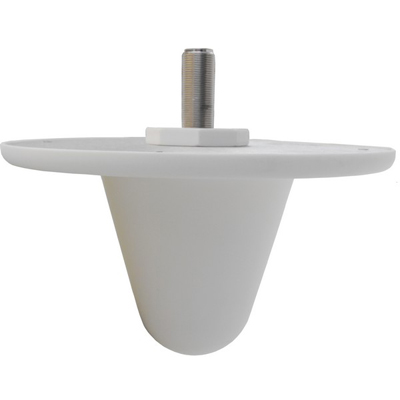

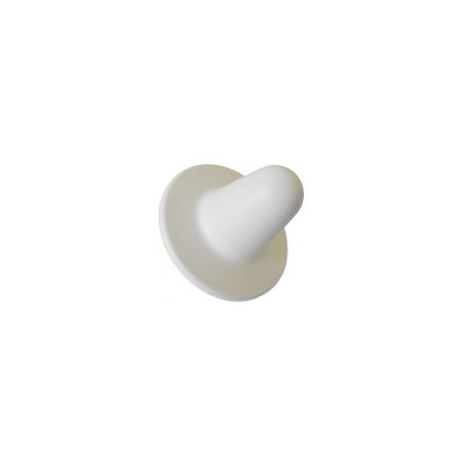

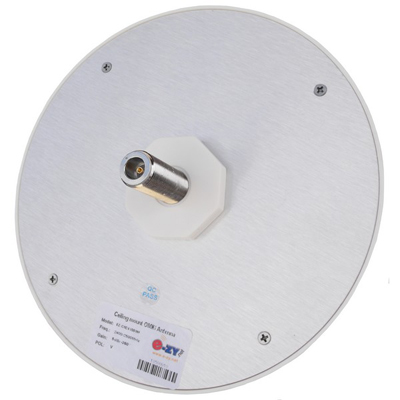

The EZ-CM24V05INF Indoor Ceiling OMNI antenna systems offered by e-zy.net are designed for in-building transmission of Wireless LAN signals.
The antennas are constructed of UL94-V0 white ABS plastic. The low profile attractive styling blends well in almost any office or home environment.
Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings.
The antenna comes with a bulkhead N Female connector standard which is long enough to mount through a max 1" thick ceiling.
| Σύνδεσμοι Προϊόντος: | |||
|---|---|---|---|
 Datasheet |
|||
| Specifications | |
|---|---|
| Freq Range | 2400-2500MHz |
| Bandwidth | 100MHz |
| Gain | 5dBi |
| VSWR | <1.4 |
| Ligthning Protection | DC Ground |
| Max Power | 50W |
| Polarization | Vertical |
| Impedance | 50Ohm |
| Connector | N-Type Female integrated |
| Dimensions | D184 x 105mm |
| Weight | 280gr |
| Radome Material | UV Stabilized ABS |
| Radiator Metrial | Brass |
| Color | Sand white |
| Package Weight | 370gr |
Part Number:
EZ-CM24V05INF
