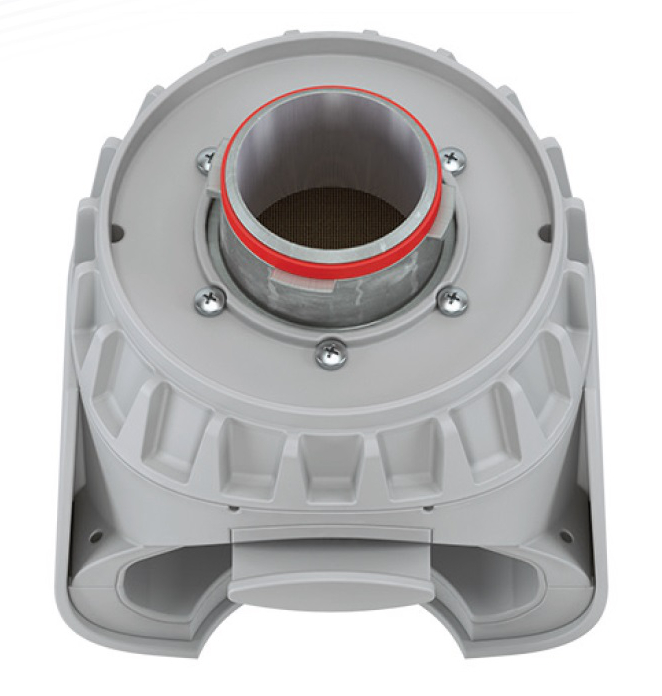

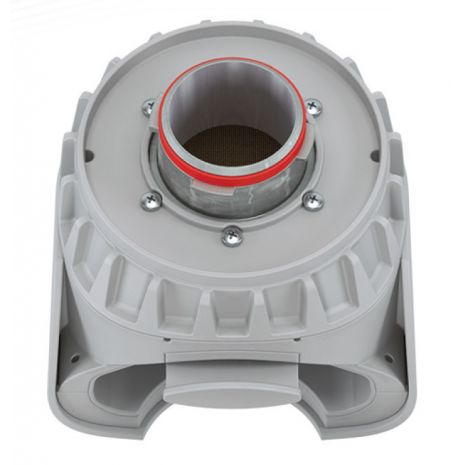

The TwistPort„ Adaptor for Rocket 5AC-Lite makes the Rocket„ compatible with all TwistPort„ Antennas. TwistPort„ Adaptors are equipped with our original quick locking waveguide port. Connecting and disconnecting the Rocket„ 5AC-Lite into the TwistPort„ Adaptor is very simple and requires no tools.
What Is A TwistPortTM Adaptor
TwistPortTM Adaptors make most popular connectorized radios and MikroTikTM RouterBoards compatible with any TwistPortTM antennas. They are the key to the entire TwistPortTM ecosystem with all its benefits - low loss, high scalability, easy co-location, simple deployment, and easy maintenance.
For Ubiquiti NetworksTM RocketTM Radios
TwistPortTM Adaptors for Ubiquiti NetworksTM RocketTM radios enable integration with RocketTM M5, RocketTM 5AC-Lite, RocketTM 5AC-PTP, and RocketTM 5AC-PTMP. The adaptor uses special coaxial connectors without threads, so the installation is effortless. Simply slide the radio into the adaptor until you hear “click”. To unlock, press the button and slide the radio out.
To improve co-location performance and decrease noise emmission, TwistPortTM Adaptors are available also in a shielded version. Shielded Adaptors for UBNTTMRocketTM radios have a visible metal enclosure attached to the main body.
TwistPortTM Adaptor for the latest RocketTM 5AC Prism is now available so you can connect it to any TwistPortTM antenna. The GPS antenna connector is located on the bottom of the Adaptor. The integration with the radio is smooth and effortless. TwistPortTM Adaptor for Rocket 5AC Prism covers an ultra-wideband spectrum from 5180 MHz to 6400 MHz!
For MikroTikTM RouterBoardTM
TwistPortTM Adaptors for MikroTikTM RouterBoardTM are compatible with popular RouterBoardTM RB92x, RB91x, RB71x and RB41x product series. The installation of the RouterBoardTM is quick and easy.
To improve co-location performance and decrease noise emmission, TwistPortTM Adaptor for MikroTikTM RouterBoardTMare available also in a shielded version.Shielded Adaptor for MikroTikTM RouterBoardTM is equipped with an additional metal cage hidden inside the enclosure.
For Cambium NetworksTM ePMP1000TM
TwistPortTM Adaptor for Cambium NetworksTM ePMP1000TM radios allows easy integration with ePMP1000TM AP and CSM radios.
The TwistPortTM Adaptor uses special coaxial connectors without threads, so the installation of the radio is effortless. Simply slide the radio into the adaptor until you hear “click”. To unlock, press the button and slide the radio out.
Wideband Performance
Starting with version "V2", you can utilize all benefits of TwistPortTM eco-system and superb performance of TP antennas in wideband. TwistPortTM Adaptors V2 cover ultra-wideband spectrum: 5180-6400 MHz!
Easy Integration
Check how easy the TwistPortTM Adaptor integrates connectorized radios and MikroTikTM RouterBoardTM.
Integration of the new Rocket 5AC Prism is revolutionary simple!
| Technical data | |
| Antenna Connection | TwistPort - Quick Locking Waveguide Port |
| Radio Connection | 2x Slide-On RP-SMA |
| Materials | Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Weight | 0.5 Kg / 1.1 lbs single unit incl. package |
| Performance | |
| Frequency Range | 5400 - 5900 MHz |
| Polarization | Dual Linear H + V |
| Cross Pol Isolation (Min) | 29 dB |
| VSWR Max | 1.8 |
| VSWR Typical | 1.4 |
| Impedance | 50 Ohm |
| Isolation Between Ports | 37 dB |
- Datasheet: TwistPort Adaptor for Rocket AC
- Installation Guide: Twistport Adaptor for Rocket AC
