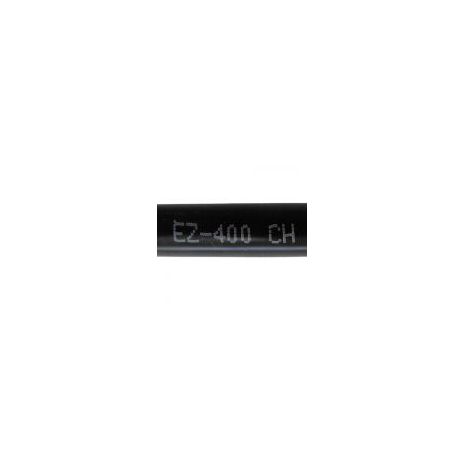

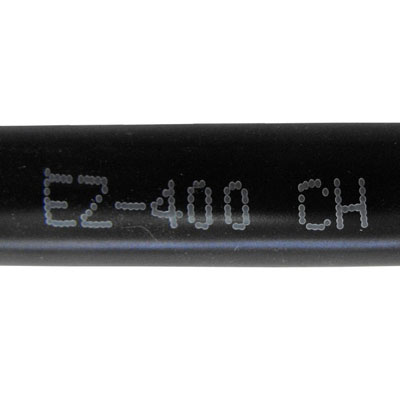

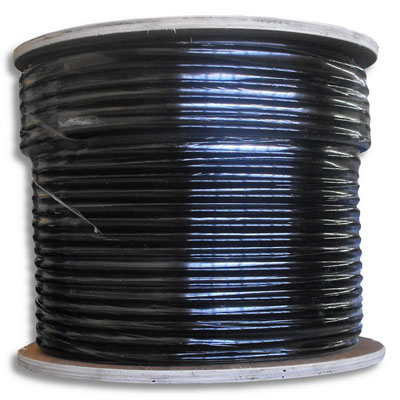

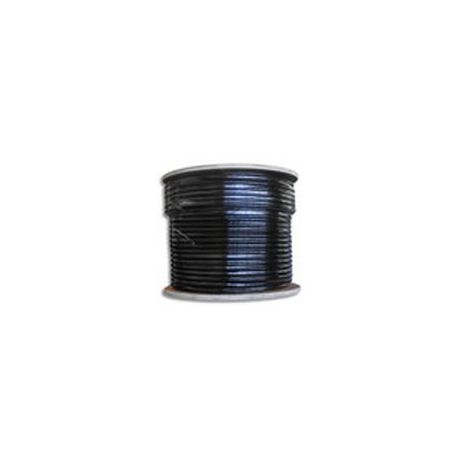

EZ-400, 100 meter Spool.
EZ-400 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.
It is constructed with a UV resistant polyethylene jacket for outdoor use.
This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.
Ehanced for usage from 2GHz up to 6GHz
| Σύνδεσμοι Προϊόντος: | |||
|---|---|---|---|
 Datasheet |
|||
| Electrical Specifications : | |
|---|---|
| Cutoff Frequency | 16.2 GHz |
| Velocity of Propagation | 85% |
| Impedance | 50 ohms |
| Capacitance | 23.9 pF/ft (78.4 pF/m) |
| DC Resistance Inner Conductor Outer Conductor |
1.39 ohms/1000ft (10.5 ohms/km) 1.65 ohms/1000ft (12.8 ohms/km) |
| Peak Power | 16 kW |
| Jack Spark | 8000 Volts RMS |

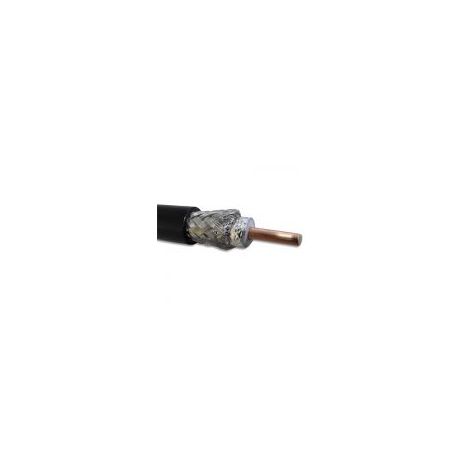

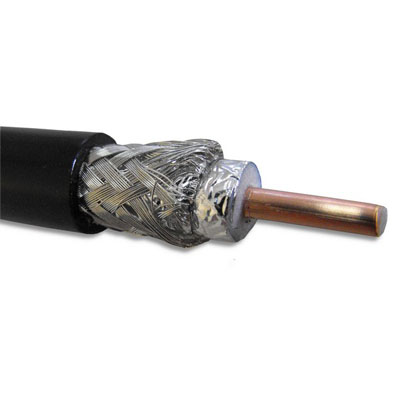

| Cable Construction: | |
| Inner Conductor | Solid Bare Copper (BC) / Aluminum 0.11 in (2.8 mm) |
| Dielectric | Foam Polyethylene 0.285 in (7.24 mm) |
| Outer Conductor | Aluminum Tape 0.291 in (7.39 mm) |
| Capacitance | 23.9 pF/ft (78.4 pF/m) |
| Braid | 34 AWG Tinned Copper, 90% coverage 0.32 in (8.13 mm) |
| Jacket | Black PVC/PE 0.405 in ±.008 in (10.29 mm ±0.2 mm) |
| Mechanical and Environmental Specifications: | |
| Minimum Bend Radius | 1.0 in (25.4 mm) |
| Tensile Strength | 160 lb (72.6 kg) |
| Cable Weight | 0.068 lb/ft (1.0 kg/m) |
| Operating Temperature Range | -49°F to +149°F (-45°C to +65°C) |
Part Number:
EZ-400-100
