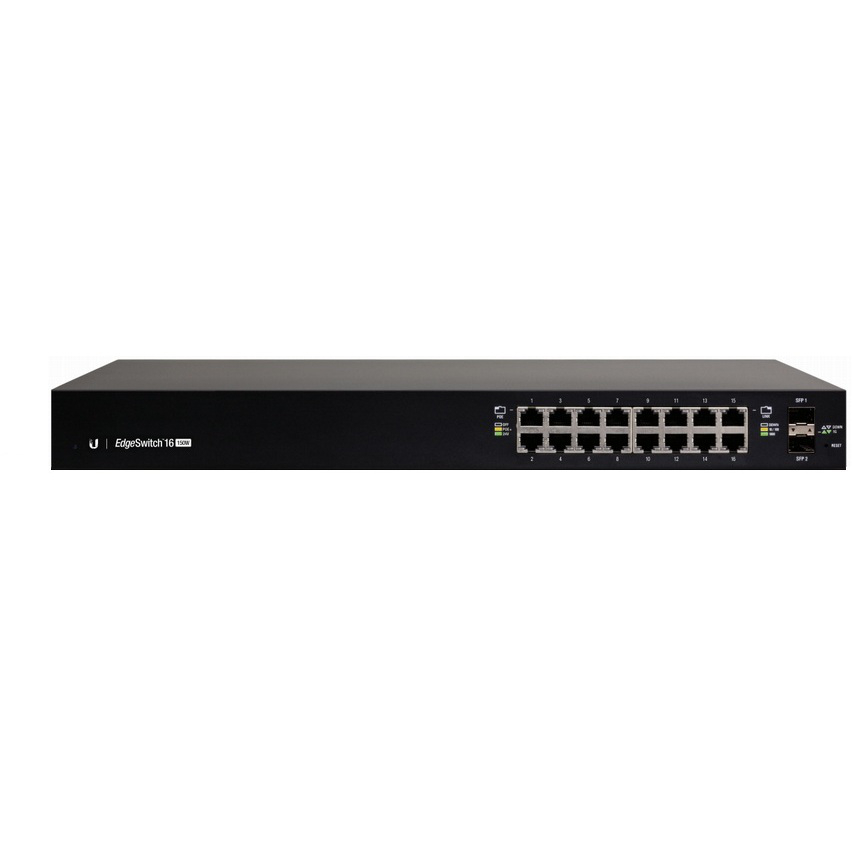

Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
For its total, non-blocking throughput it supports up to 18 Gbps.
By defaule EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Powerful Enterprise Switch Models
The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Enterprise-Class Features
The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Model Comparison
|
ES-16-150W |
ES-24-250W |
ES-24-500W |
ES-48-500W |
ES-48-750W |
|
|---|---|---|---|---|---|
| Total Non-Blocking Throughput | 18 Gbps | 26 Gbps | 26 Gbps | 70 Gbps | 70 Gbps |
| Gigabit RJ45 Ports | 16 | 24 | 24 | 48 | 48 |
| SFP+ Ports | N/A | N/A | N/A | 2 | 2 |
| SFP Ports | 2 | 2 | 2 | 2 | 2 |
| Max. Power Consumption | 150W | 250W | 500W | 500W | 750W |
