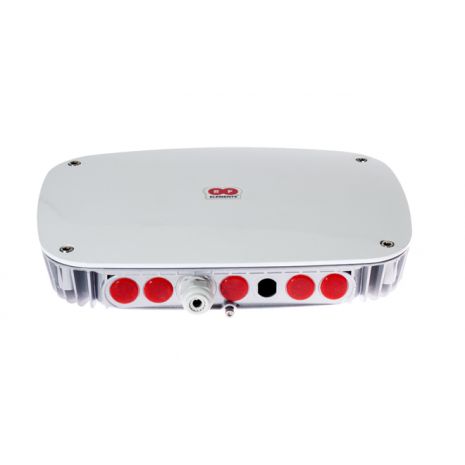

StationBox® ALU is IP65 rated outdoor enclosure for wireless platforms and access points.

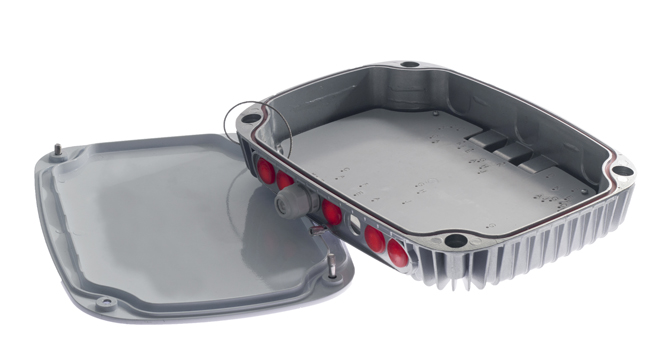

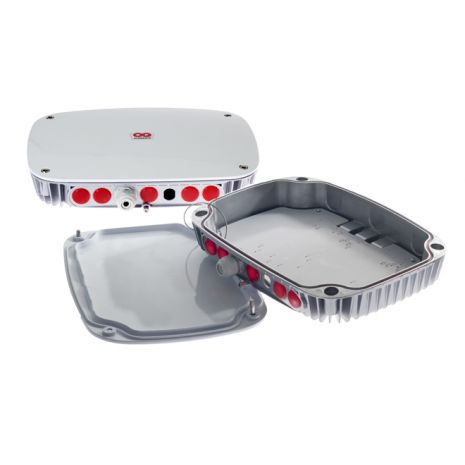

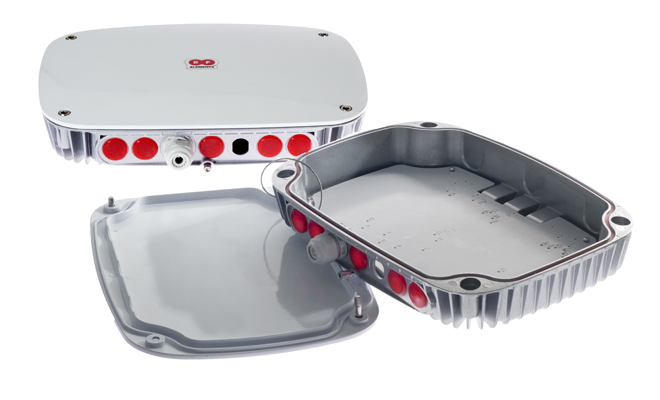

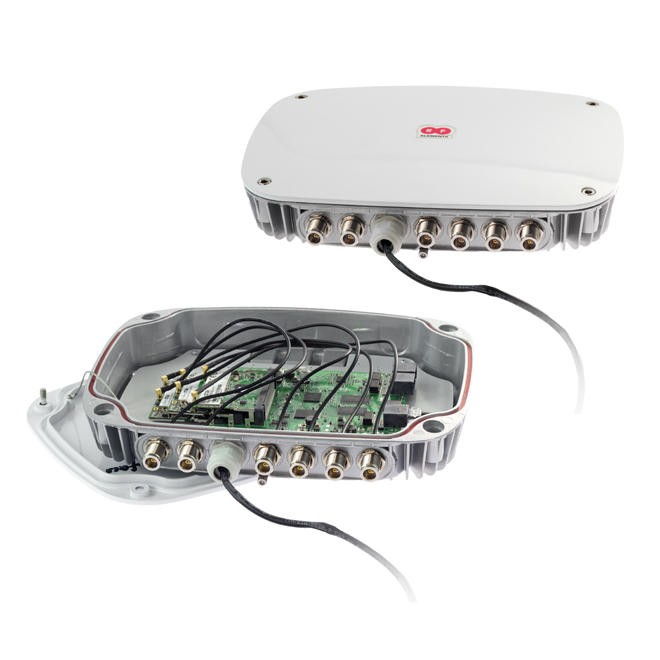

Casted aluminium construction is covered with UV resistant paint and offers excellent weather resistance and improved RF noise protection. Inner mounting plate is made of ABS and has premolded holes for installation of most used wireless platforms as MikroTik, Alix or TP-link. Other devices of choice can be installed as well.

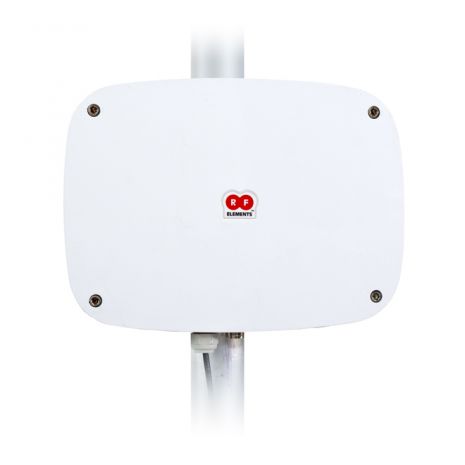

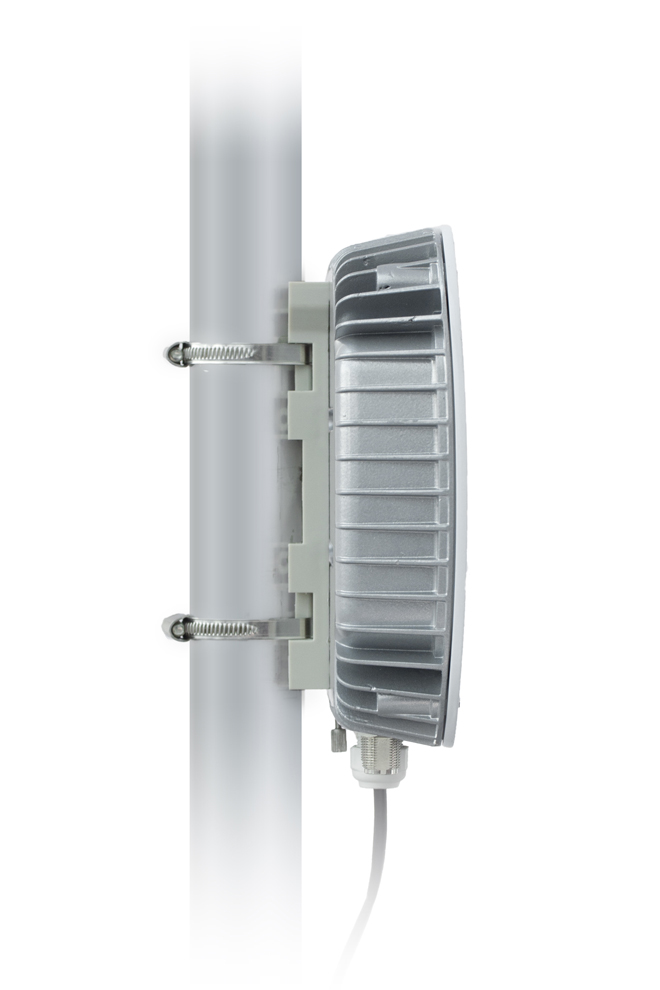

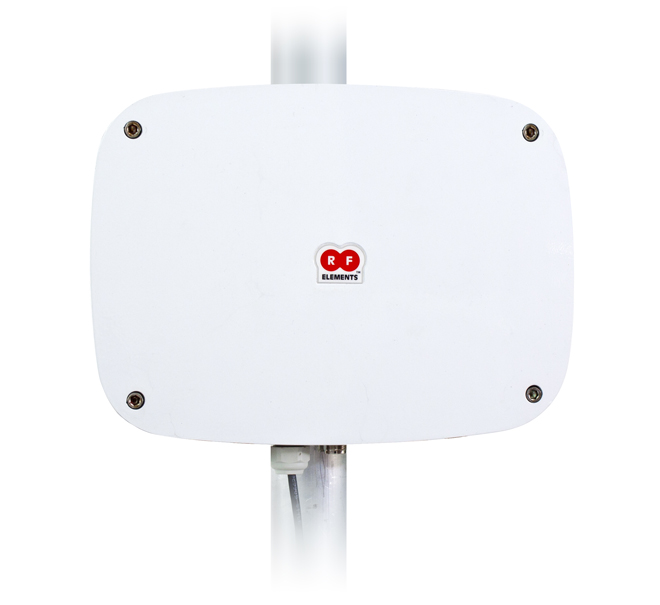

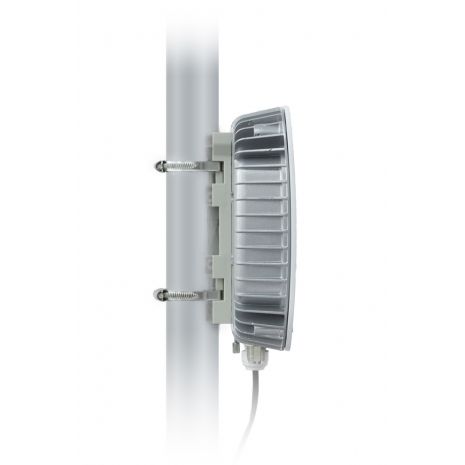

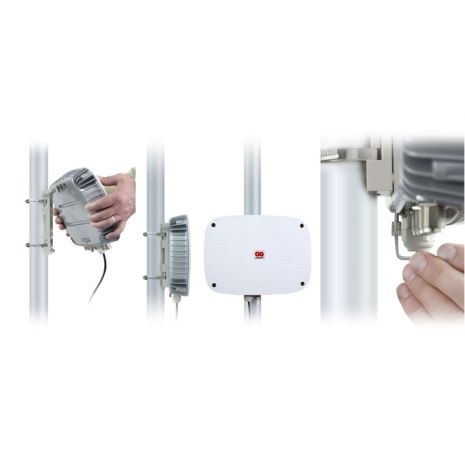

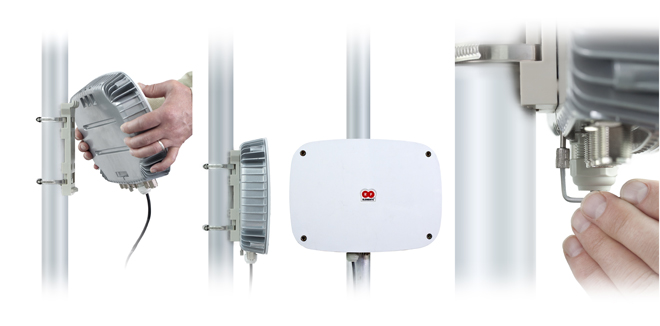

Mounting bracket is made of high resistant PA6 plastic and enables installation on the pole or on the wall. Installation is ease and quick. Mounting bracket made of plastic also helps to isolate mechanical vibrations coming from the pole to the enclosure and electronics.
Corrosion resistance is enhanced by using only high grade materials. Enclosure is made of casted aluminium and covered with UV resistant paint. All hardware is made of Stainless Steel. Body screws are captive, they do not fall out when released.
Download
Download
Product / Product ID
StationBox ALU (6xN + 1xEth)
SBX-ALU-6N-1E

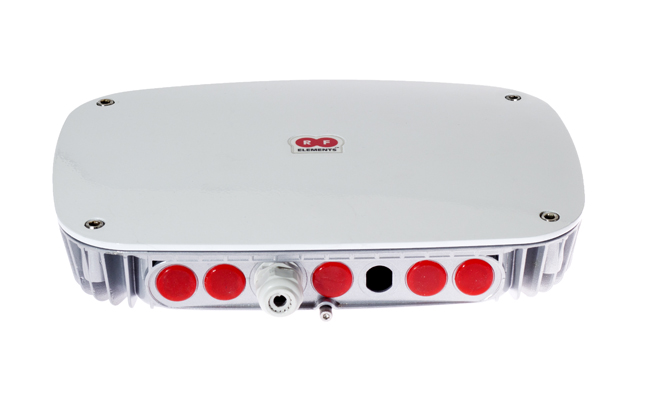

Product has 6xN positions and 1 preinstalled cable gland /typically used for Ethernet cable/. 5 out of 6 N-holes are blinded with silicone rubber plugs. Enclosure is designed to be used with standard N-female bulkheads with rubber o-ring. Pigtails are not included in package.Outdoor shielded ethernet connector optional (to be ordered separately).
Compatible Wireless Platform
MikroTik
RB433, RB411, RB711,RB912
Ubiquiti Networks
RouterStation, RouterStation Pro
PC Engines
Alix2, Alix3, Alix6
Redwave
RW2458N
Other Manufacturers
Simply drill the holes into plastic board and use suitable plastic spacers delivered in package.
