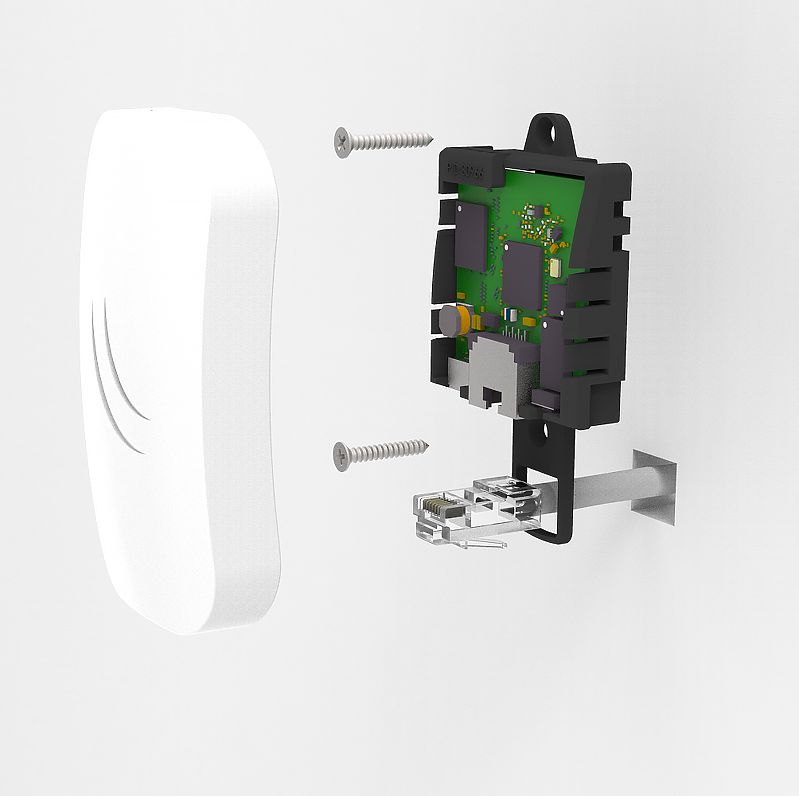

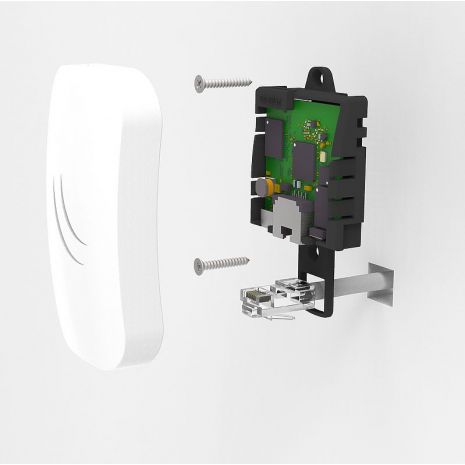

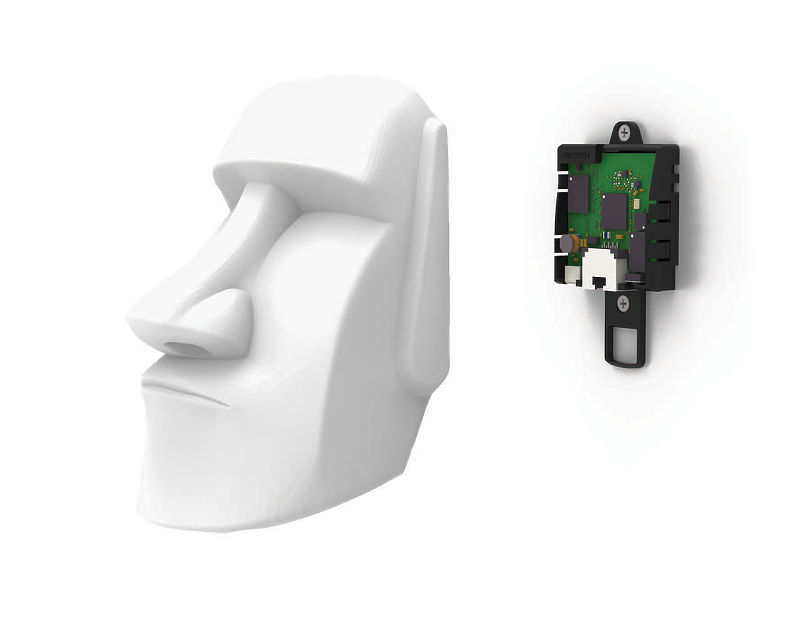

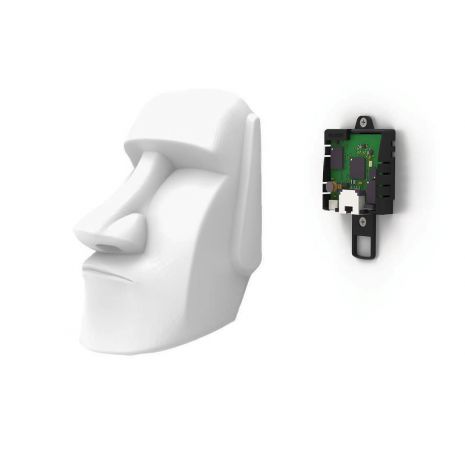

Το cAP lite είναι ένα μικρό σε μέγεθος access point, κατάλληλο για χρήση σε αεροδρόμια, ξενοδοχεία, καταστήματα, και άλλους χώρους. Περιλαμβάνει στην συσκευασία δυο διαφορετικά καπάκια και παρέχει δυνατότητα ο χρήστης να δημιουργήσει δικά του καπάκια με την χρήση 3D εκτυπωτή.
To cAP lite υποστηρίζει 802.11b/g/n και μπορεί να τροφοδοτηθεί από PoE. Είναι η καλύτερη επιλογή γιατί μπορεί να συνεργαστεί με την λειτουργία MikroTik CAPsMAN που επιτρέπει τον έλεγχο συσκευών AP από ένα κεντρικό σημείο. To cAP lite μπορεί επίσης να χρησιμοποιηθεί αυτόνομα ως access point χρησιμοποιώντας όλες της δυνατότητες του RouterOS.
| Details | |
|---|---|
| Product code | RBcAPL-2nD |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless standards | 802.11b/g/n |
| Wireless chip model | QCA9533 |
| Supported input voltage | 5 V - 60 V |
| PoE in | 802.3af/at |

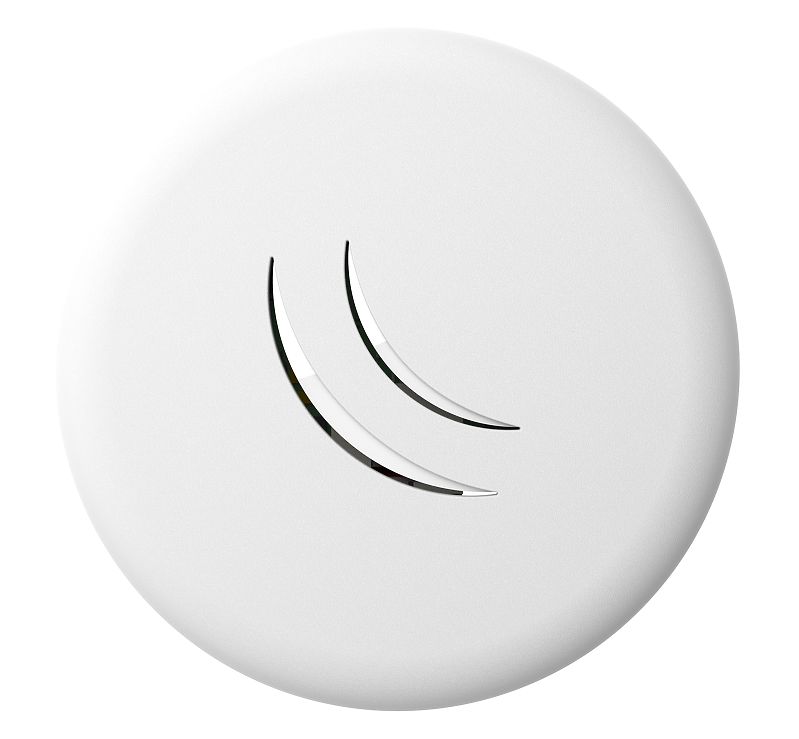

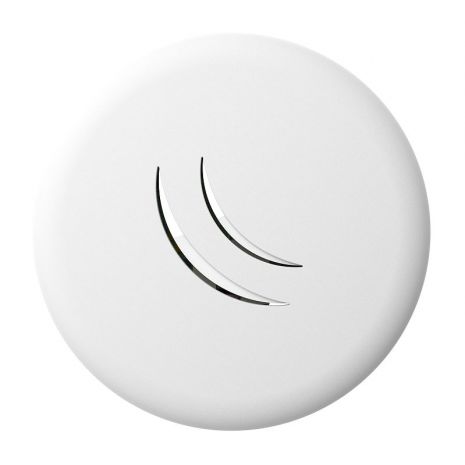

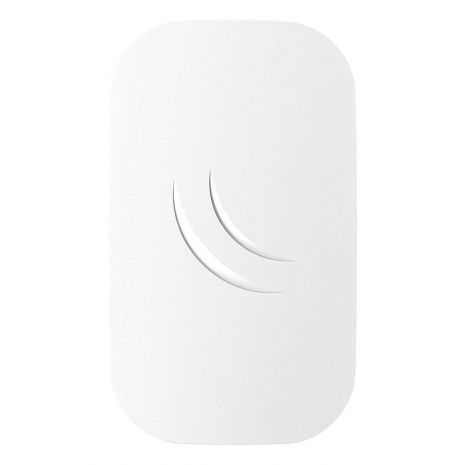

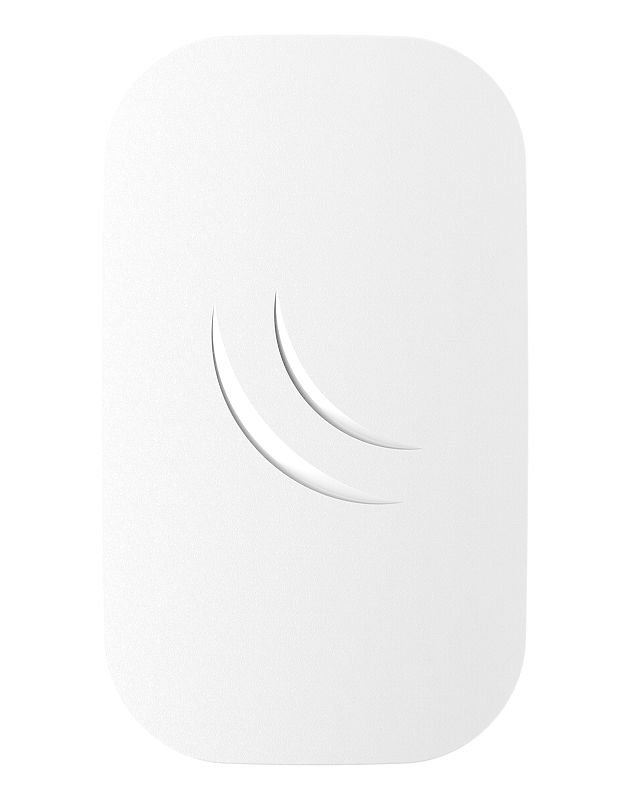

| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. +70°C |
| License level | 4 |
| Antenna gain DBI | 1.5 |
| CPU | QCA9533 |
| Max Power consumption | 4W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
Ethernet test results
| RBcAPL-2nD | QCA9533 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Wireless specifications
| 2.4 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 1MBit/s | 22 | -96 | 158 |
| 11MBit/s | 22 | -89 | 158 |
| 6MBit/s | 20 | -93 | 100 |
| 54MBit/s | 18 | -74 | 63 |
| MCS0 | 20 | -93 | 100 |
| MCS7 | 16 | -71 | 40 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Part Number:
RBcAPL-2nD
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: 1
Gigabit Ports:
Gigabit Ports: none
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: 2
CPU:
CPU: QCA9533
Wireless Chip Model:
Wireless Chip Model: QCA9533
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence: Level4
USB:
- USB: No
Memory cards:
- Memory Cards: No
Integrated Wireless:
- Integrated Wireless: Yes
Voltage Monitor:
- Voltage Monitor: No
Temperature sensor:
- Temperature sensor: No
Serial Port:
- Serial Port: No
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: 802.11b
- Wireless standards: 802.11g
- Wireless standards: 802.11n
