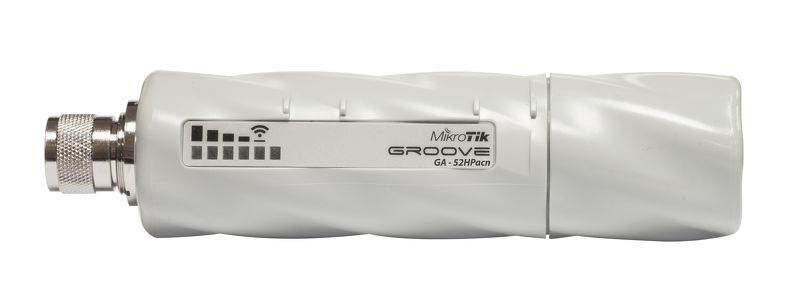

Το μικρότερο μοντέλο εξωτερικού χώρου της Mikrotik - ένα ασύρματο RouterBOARD με όλα τα χαρακτηριστικά και την υποστήριξη από το RouterOS.
Αδιάβροχο, στιβαρό και έτοιμο για χρήση. Τώρα με υποστήριξη 802.11ac, ένα Gigabit Ethernet port και επιλογή ασύρματης συχνότητας (2.4GHz ή 5GHz, έως και 80 MHz εύρος καναλιού). Το νέο Gigabit port θα σας βοηθήσει να χρησιμοποιήσετε όλη την ταχύτητα του ασύρματου 802.11ac.
Το Groove A (AP model) έρχεται με Level 4 άδεια και περιλαμβάνει μια Dual Band 2.4/5GHz Omni directional κεραία (6dBi 2.4GHz, 8dBi 5GHz), ώστε να μπορέσετε να το χρησιμοποιήσετε αμέσως μόλις το βγάλετε από το κουτί, ή να χρησιμοποιήσετε μια δική σας κεραία.
Product specifications
| Details | |
|---|---|
| Product code | RBGrooveG-52HPacn |
| 10/100/1000 Ethernet ports | 1 |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 177 x 44 x 44 mm |
| License level | 3 |
| Max Power consumption | 5W |
| Number of chains | 1 |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| PoE in | Yes |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Supported input voltage | 10 V - 30 V |
| Tested ambient temperature | -40 +70 C |
| Voltage Monitor | Yes |
| Wireless chip model | QCA-9889 |
| Wireless standards | 802.11a/b/g/n/ac |
Wireless specifications
| 2.4 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 1MBit/s | 24 | -97 | 251 |
| 11MBit/s | 21 | -91 | 126 |
| 6MBit/s | 24 | -93 | 251 |
| 54MBit/s | 21 | -77 | 126 |
| MCS0 | 24 | -93 | 251 |
| MCS7 | 20 | -72 | 100 |
| 5 GHz | |||
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 26 | -93 | 398 |
| 54MBit/s | 21 | -78 | 126 |
| MCS0 | 26 | -93 | 398 |
| MCS7 | 21 | -74 | 126 |
| MCS9 | 19 | -69 | 79 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Ethernet test results
| RBGrooveG-52HPacn | QCA9556 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 233.1 | 954.8 | 576.7 | 295.3 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 123.7 | 506.7 | 117.8 | 60.3 |
| Routing | none (fast path) | 81.2 | 986.1 | 233.1 | 954.8 | 454.8 | 232.9 |
| Routing | 25 simple queues | 81.2 | 986.1 | 152.6 | 625.0 | 137.2 | 70.2 |
| Routing | 25 ip filter rules | 69.4 | 842.8 | 66.3 | 271.6 | 68.7 | 35.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
- Voltage Monitor: Yes
- Temperature sensor: Yes
- Wireless standards: 802.11ac
- Wireless standards: 802.11a
- Wireless standards: 802.11b
- Wireless standards: 802.11g
- Wireless standards: 802.11n
