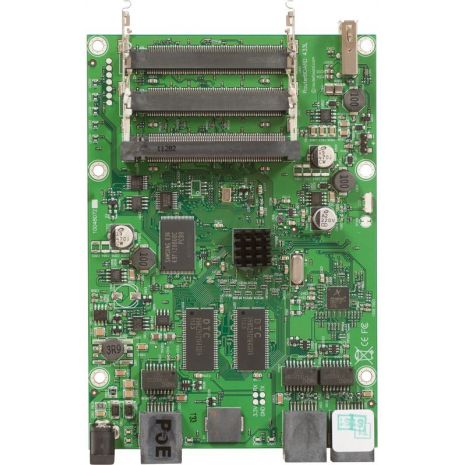

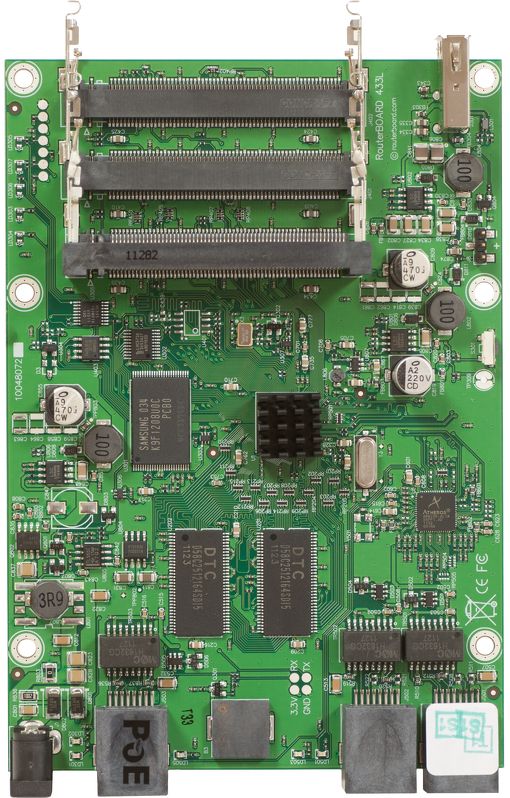

The RB433UL has three miniPCI slots, three Ethernet ports and one USB port for storage or a 3G modem.
Use this device in an outdoor case for a sector AP installation, or for a wireless point to point link.
It’s powered by an Atheros 300MHz CPU, has 64MB of RAM and a Level4 RouterOS license.
| Details | |
|---|---|
| Product code | RB433UL |
| CPU nominal frequency | 300 MHz |
| SFP DDMI | 0 |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 3 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 3 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| 802.3af support | no |
| Supported input voltage | 8 V - 28 V |
| PoE in | Yes |
| PoE out | No |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | No |
| Dimensions | 105x154mm |
| Operating System | RouterOS |
| Operating temperature range | -40°C .. +70°C tested |
| License level | 4 |
| Current Monitor | No |
| CPU | AR7130-BC1A |
| Max Power consumption | 2W board only, 14W available to minIPCI cards |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 0 |
| Serial port | RS232 |
- RouterBoot: ar9340_3.19.fwf
- Brochure : rb433UL-141104142729.pdf
- Quick Guide : rb433L-series-qg_1377088585.pdf
- Purchase questions: email sales
- RouterOS software manual
- Declaration of conformity (CE)
| RB433UL | AR7130 100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 16.2 | 196.7 | 47.0 | 192.5 | 97.3 | 49.8 |
| Bridging | 25 bridge filter rules | 16.2 | 196.7 | 40.6 | 166.3 | 41.0 | 21.0 |
| Routing | none | 16.2 | 196.7 | 47.0 | 192.5 | 79.4 | 40.7 |
| Routing | 25 simple queues | 16.2 | 196.7 | 47.0 | 192.5 | 67.8 | 34.7 |
| Routing | 25 ip filter rules | 16.2 | 196.7 | 28.9 | 118.4 | 24.7 | 12.6 |
