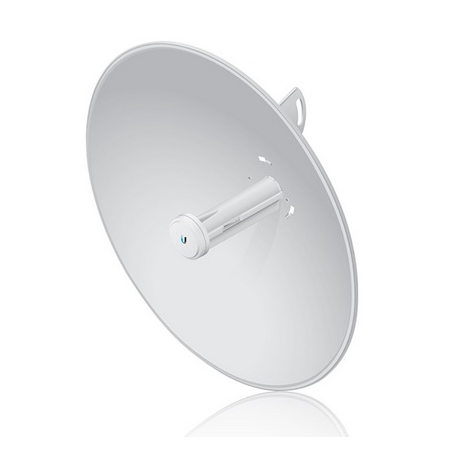

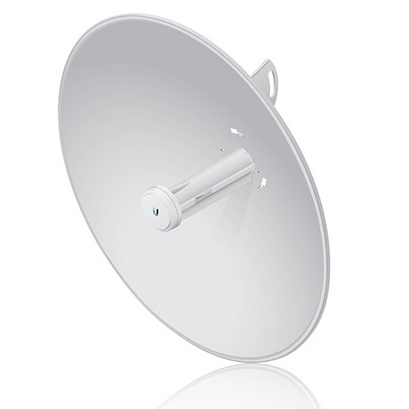

UBIQUITI: PowerBeam PBE 5AC-300 22dBi 5GHz , High-Performance airMAX ac Bridge
Using airMAX ac technology, the PBE-5AC-300 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The PBE-5AC-300 also includes a protective radome to shield the radio from the elements.
Ubiquiti's InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
The form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam™s excellent beam directivity provides the best performance in high-noise environments.
The NanoBeam PBE-5AC-300 includes a protective radome to shield the radio from the elements.
Main features
- High capacity Point-to-Point bridge
- 802.11ac support - up to 450Mbps of real throughput
- Innerfeed™ integrated feeder
| Channel Sizes | 10/20/30/40/50/60/80 MHz |
| Enclosure | Outdoor UV Stabilized Plastic |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| LED'S | (1) Power, (1) LAN, (4) WLAN |
| Operating Humidity | 5 to 95% Noncondensing |
| Polarization | Dual Linear |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Vibration Test | IEC 68-2-6 |
| Wind Loading | 210 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Wireless Approvals | FCC, IC, CE |
| Βάρος | 2.55 kg |
| Επεξεργαστής | Atheros MIPS 74Kc, 560 MHz |
| Θερμοκρασίες Λειτουργίας | -40 to 70° C |
| Θύρες Δικτύου | (1) 10/100/1000 Ethernet Port |
| Ισχύς Εξόδου | 22 dBm |
| Μέγιστη Κατανάλωση | 5.5W |
| Μέθοδος Τροφοδοσίας | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Στίριξη | Pole-Mount Kit Included |
| Τροφοδοσία | 24V, 0.5A Gigabit PoE |
| Φάσμα Συχνοτήτων | 5170 - 5875 MHz |
| Μνήμη | 64 MB DDR2, 16 MB Flash |
| Διαστάσεις προιόντος | 364 x 364 x 276 mm |
