Perfect for building low cost CPE devices.

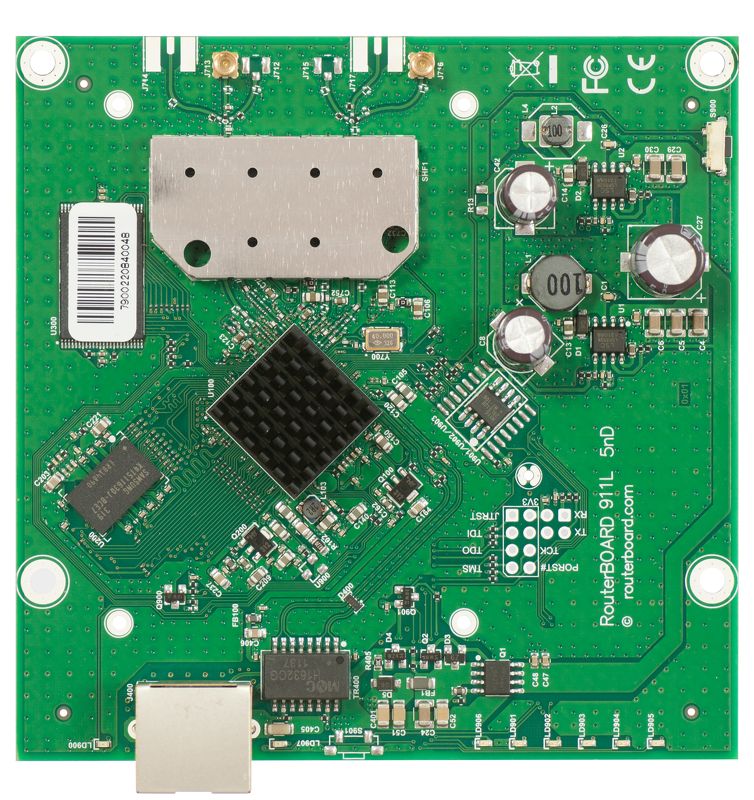

The RB911-5HnD is a small CPE type RouterBOARD wireless router with an integrated 5Ghz Dual Chain wireless card. It’s equipped with powerful 600MHz CPU, providing superb value for money.
Product specifications
| Details | |
|---|---|
| Product code | RB911-5HnD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | 1 |
| Wireless chip model | AR9344 |
| Wireless standards | 802.11a/n |
| Supported input voltage | 6 V - 30 V |
| PoE in | Yes |
| Dimensions | 105x105mm |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. +70°C tested |
| License level | 3 |
| CPU | AR9344 |
| Max Power consumption | 7W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
Wireless specifications
| 5 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 26 | -96 | 398 |
| 54MBit/s | 22 | -77 | 158 |
| MCS0 | 26 | -96 | 398 |
| MCS7 | 21 | -71 | 126 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Ethernet test results
| RB911-5HnD | AR9344 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RB911-5HnD
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: 1
Gigabit Ports:
Gigabit Ports: none
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: 2
CPU:
CPU: AR9344
Wireless Chip Model:
Wireless Chip Model: AR9344
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence: Level3
USB:
- USB: No
Memory cards:
- Memory Cards: No
Integrated Wireless:
- Integrated Wireless: Yes
Voltage Monitor:
- Voltage Monitor: No
Temperature sensor:
- Temperature sensor: No
Serial Port:
- Serial Port: No
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: 802.11a
- Wireless standards: 802.11n
