MikroTik CCR1016-12G, 16x1.2GHz, 2GB, 12xGigabit, LCD, microUSB, L6

547.58
(679.00  Με ΦΠΑ)
730 ημέρες
Βάρος: 2.10 kg ανά τεμάχιο
001577
+

Το CCR1016 είναι ένα βιομηχανικού τύπου ταχύτατο router με τελευταίας τεχνολογίας 16 πυρήνων CPU. Αν χρειάζεστε πολλά εκατομμύρια πακέτα το δευτερόλεπτο - το Cloud Core Router είναι η καλύτερη επιλογή σας.

Το μυαλό του cloud core router είναι το RouterOS, ένα λειτουργικό σύστημα με πληθώρα χαρακτηριστικών που βελτιώνεται συνέχεια τα τελευταία δεκαπέντε χρόνια. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing και bonding, real-time configuration και monitoring - μερικά μόνο από τον τεράστιο αριθμό χαρακτηριστικών που υποστηρίζει το RouterOS.

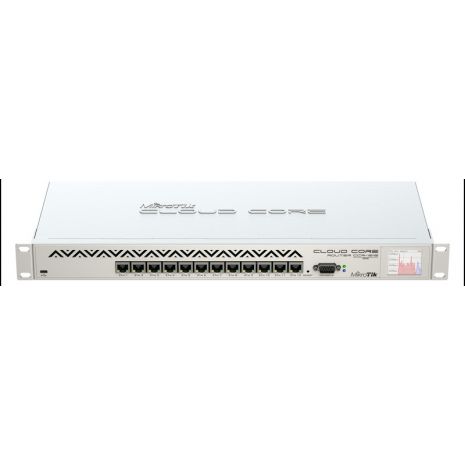

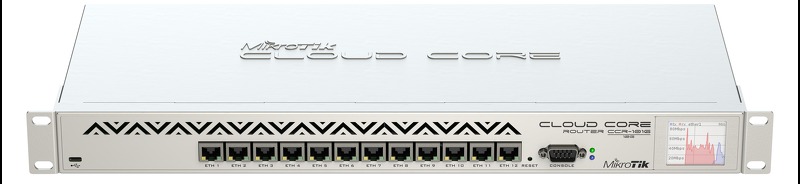

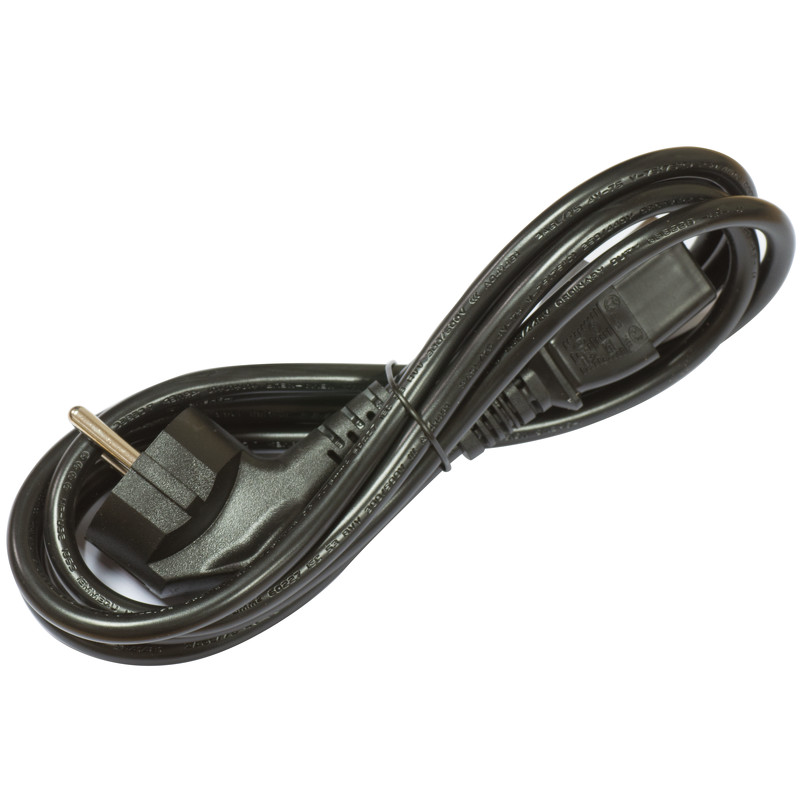

Η συσκευή είναι διαθέσιμη με ένα 1U rackmount περίβλημα, έχει δώδεκα Gigabit ethernet ports, ένα serial console καλώδιο και ένα USB port. Το CCR1016-12G έχει δύο SODIMM slots, έρχεται με 2GB RAM, αλλά δεν έχει όριο μνήμης στο RouterOS (δέχεται και διαχειρίζεται 16GB ή και περισσότερα). Έρχεται με power supply και 1U rackmount κουτί.

Details
Product code CCR1016-12G
CPU nominal frequency 1.2 GHz
CPU core count 16
Architecture Tile GX
Size of RAM 2 GB
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 12
MiniPCI slots 0
MiniPCI-e slots 0
Number of USB ports 1
Power Jack 1
Supported input voltage 13 V - 28 V
PoE out No
PoE in No
Voltage Monitor Yes
CPU temperature monitor Yes
PCB temperature monitor No
Dimensions 355x145x55mm
Operating System RouterOS v6 (64bit)
Operating temperature range -10C to +50C
License level 6
Antenna gain DBI No
Current Monitor Yes
CPU TLR4-01680CG-12CE-A3a
Max Power consumption 48W
SFP ports 0
SFP+ ports 0
USB slot type microUSB type AB
Number of chains 0
Serial port RS232
CCR1016-12G Tile 16 core max possible throughput test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 974.0 11,828.3 2,817.0 11,538.4 15,244.5 7,805.2
Bridging 25 bridge filter rules 974.0 11,828.3 1,981.6 8,116.6 2,101.5 1,076.0
Routing none (fast path) 974.0 11,828.3 2,817.0 11,538.4 13,186.3 6,751.4
Routing 25 simple queues 974.0 11,828.3 2,809.0 11,505.7 3,274.0 1,676.3
Routing 25 ip filter rules 974.0 11,828.3 1,191.4 4,880.0 1,298.8 665.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
CCR1016-12G
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: none
Gigabit Ports:
Gigabit Ports: 12
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: none
CPU:
CPU: TLR4-01680CG-12CE-A3a
Wireless Chip Model:
Wireless Chip Model: none
Architecture:
Architecture: TILE
Licence Level:
Licence: Level6
USB:
  • USB: Yes
Memory cards:
  • Memory Cards: No
Integrated Wireless:
  • Integrated Wireless: No
Voltage Monitor:
  • Voltage Monitor: Yes
Temperature sensor:
  • Temperature sensor: Yes
Serial Port:
  • Serial Port: Yes
PoE out:
  • PoE out: No
Wireless standards:
  • Wireless standards: none
