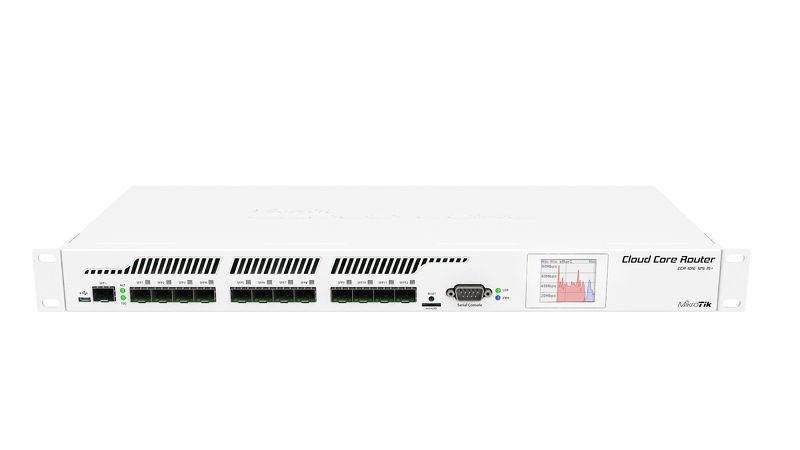

Το CCR1016 είναι ένα βιομηχανικού τύπου ταχύτατο router με τελευταίας τεχνολογίας 16 πυρήνων CPU. Αν χρειάζεστε πολλά εκατομμύρια πακέτα το δευτερόλεπτο - το Cloud Core Router είναι η καλύτερη επιλογή σας.

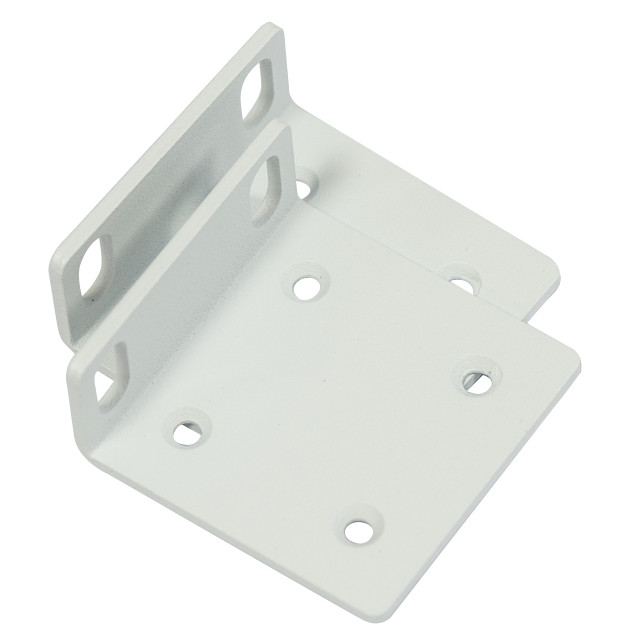

Αυτό το μοντέλο έχει δώδεκα SFP ports και ένα SFP+ port για συνδέσεις στα 10G. Είναι διαθέσιμο με ένα 1U rackmount περίβλημα και έχει επίσης ένα serial console port, ένα touchscreen LCD και ένα USB port.

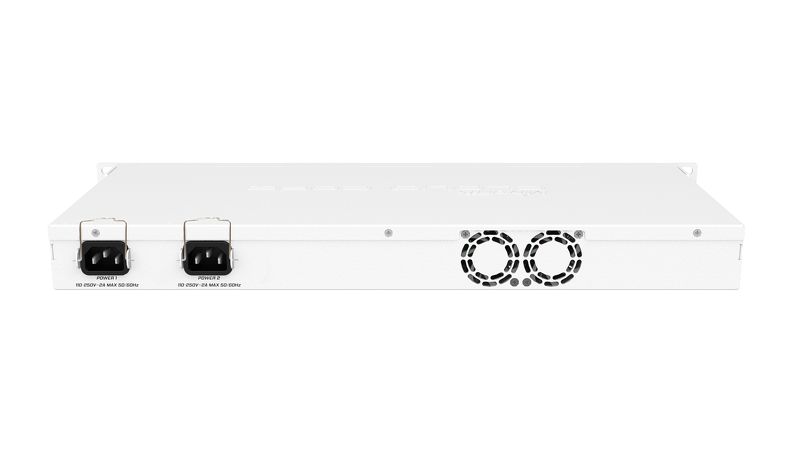

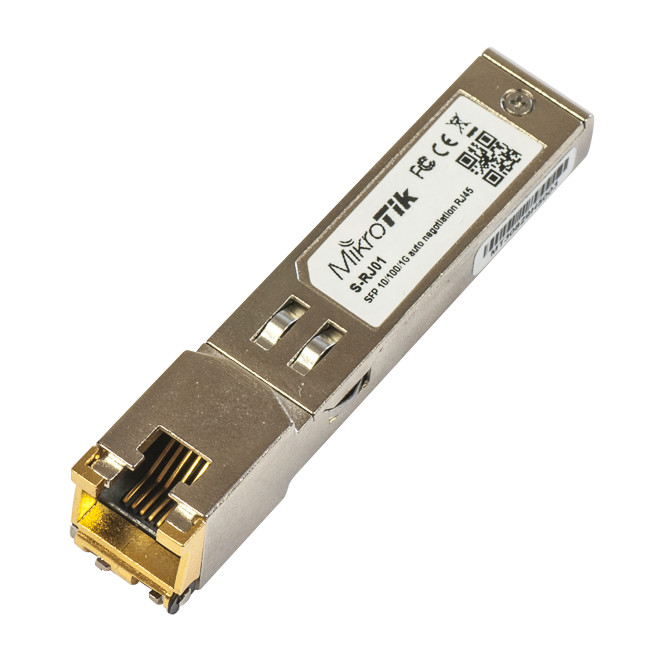

Το CCR1016-12S-1S+ έρχεται με εφεδρικό power supply και ένα RJ45 SFP 10/100/1000M copper module.
Η SFP+ θήκη υποστηρίζει επίσης και κλασικά SFP (1.25G) modules
| Details | |
|---|---|
| Product code | CCR1016-12S-1S+ |
| SFP DDMI | Yes |
| CPU nominal frequency | 1.2 GHz |
| CPU core count | 16 |
| Size of RAM | 2 GB |
| Architecture | TILE |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | None |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| Power Jack | 2 |
| 802.3af support | No |
| Supported input voltage | 24 V - 24 V |
| PoE in | No |
| PoE out | No |
| Voltage Monitor | Yes |
| PCB temperature monitor | No |
| CPU temperature monitor | Yes |
| Operating System | RouterOS v6 |
| Operating temperature range | -10C to +50C |
| License level | 6 |
| Current Monitor | Yes |
| CPU | TLR4-01680CG-12CE-A3a |
| Max Power consumption | 44W |
| SFP ports | 12 |
| SFP+ ports | 1 |
| USB slot type | microUSB type AB |
| Serial port | RS232 |
| CCR1016-12S-1S+ | Tile 16 core max possible throughput test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 1,624.0 | 19,721.9 | 4,695.0 | 19,230.7 | 15,244.5 | 7,805.2 |
| Bridging | 25 bridge filter rules | 1,531.1 | 18,593.7 | 1,981.6 | 8,116.6 | 2,101.5 | 1,076.0 |
| Routing | none (fast path) | 1,624.0 | 19,721.9 | 4,695.0 | 19,230.7 | 13,186.3 | 6,751.4 |
| Routing | 25 simple queues | 1,624.0 | 19,721.9 | 2,809.0 | 11,505.7 | 3,274.0 | 1,676.3 |
| Routing | 25 ip filter rules | 1,062.0 | 12,896.9 | 1,191.4 | 4,880.0 | 1,298.8 | 665.0 |
Part Number:
CCR1016-12S-1S+
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: none
Gigabit Ports:
Gigabit Ports: none
SFP 1G Ports:
SFP 1G Ports: 12
SFP 10G Ports:
SFP 10G Ports:1
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: none
CPU:
CPU: TLR4-01680CG-12CE-A3a
Wireless Chip Model:
Wireless Chip Model: none
Architecture:
Architecture: TILE
Licence Level:
Licence: Level6
USB:
- USB: Yes
Memory cards:
- Memory Cards: No
Integrated Wireless:
- Integrated Wireless: No
Voltage Monitor:
- Voltage Monitor: Yes
Temperature sensor:
- Temperature sensor: Yes
Serial Port:
- Serial Port: Yes
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: none
