    • MikroTik Routerboard Cloud Core Router ( CCR1036-8G-2S+ )

    MikroTik CCR1036-8G-2S+, Cloud Core Router 8xGB LAN, 2xSFP+, L6

    Browse All MikroTik Products
    1,048.79 €
    (1,300.50 € Με ΦΠΑ)
    730 ημέρες
    002099
    + −
    στα Αγαπημένα
    Compare

    Το γρηγορότερο router μας έγινε ακόμα καλύτερο - το νέο CCR1036-8G-2S+ έχει τώρα δύο SFP+ ports για υποστήριξη 10G interfacet (το SFP+ module διατίθεται ξεχωριστά). Χρησιμοποιεί τον ίδιο 36 core Tilera CPU όπως και τα άλλα CCR1036 μοντέλα μας, και έχει την ίδια απόδοση, αλλά τώρα, υπάρχει η δυνατότητα για συνδέσεις 10 gigabit.

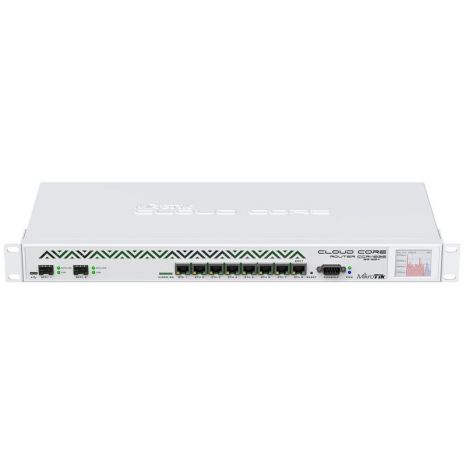

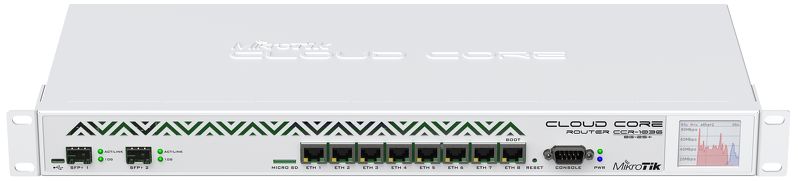

    Η συσκευή έρχεται με ένα 1U rackmount περίβλημα, έχει δύο SFP+ ports, οκτώ Gigabit ethernet ports, ένα serial console καλώδιο και ένα USB port.

    Το CCR1036-8G-2S+ έχει δύο SODIMM slots, έρχεται με 4GB RAM, αλλά δενέχει όριο μνήμης στο RouterOS (θα δεχθεί και θα διαχειρισθεί 16GB ή και περισσότερα). Επίσης διαθέσιμο τώρα, το μοντέλο EM με 16GB RAM!

    Υποστηρίζει και τα SFP (1.25G) και τα SFP+ (10G) modules.

    Details
    Product code CCR1036-8G-2S+
    CPU nominal frequency 1.2 GHz
    SFP DDMI Yes
    CPU core count 36
    Architecture TILE
    Size of RAM 4 GB
    10/100 Ethernet ports 0
    10/100/1000 Ethernet ports 8
    MiniPCI slots 0
    MiniPCI-e slots 0
    Number of USB ports 1
    Memory Cards 1
    Memory card type microSD
    Power Jack 1
    PoE out No
    Supported input voltage 14 V - 30 V
    PoE in No
    Voltage Monitor Yes
    PCB temperature monitor Yes
    CPU temperature monitor Yes
    Dimensions 355x145mm55mm
    Operating System RouterOS
    Operating temperature range -30C to +60C
    License level 6
    Antenna gain DBI No
    Current Monitor Yes
    CPU TLR4-03680CG-12CE-A3b
    Max Power consumption 78W
    SFP ports 0
    SFP+ ports 2
    USB slot type microUSB type AB
    Number of chains 0
    Serial port RS232
    CCR1036-8G-2S+ Tile 36 core max possible throughput test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 2,274.0 27,615.5 6,579.0 26,947.6 39,764.6 20,359.5
    Bridging 25 bridge filter rules 2,274.0 27,615.5 5,451.4 22,328.9 5,704.8 2,920.9
    Routing none (fast path) 2,274.0 27,615.5 6,579.0 26,947.6 34,086.1 17,452.1
    Routing 25 simple queues 2,274.0 27,615.5 5,243.2 21,476.1 8,353.1 4,276.8
    Routing 25 ip filter rules 1,956.7 23,762.2 3,392.9 13,897.3 3,481.8 1,782.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
    Part Number:
    CCR1036-8G-2S+
    Προμηθευτές:
    MikroTik
    LAN 10/100 ports:
    Lan 10/100 Ports: none
    Gigabit Ports:
    Gigabit Ports: 8
    SFP 1G Ports:
    SFP 1G Ports: none
    SFP 10G Ports:
    SFP 10G Ports:2
    MiniPCI:
    mPCI: none
    Antenna Chains:
    Antenna Chains: none
    CPU:
    CPU: TLR4-03680CG-12CE-A3b
    Wireless Chip Model:
    Wireless Chip Model: none
    Architecture:
    Architecture: TILE
    Licence Level:
    Licence: Level6
    USB:
    • USB: Yes
    Memory cards:
    • Memory Cards: Yes
    Integrated Wireless:
    • Integrated Wireless: No
    Voltage Monitor:
    • Voltage Monitor: Yes
    Temperature sensor:
    • Temperature sensor: Yes
    Serial Port:
    • Serial Port: Yes
    PoE out:
    • PoE out: No
    Wireless standards:
    • Wireless standards: none
