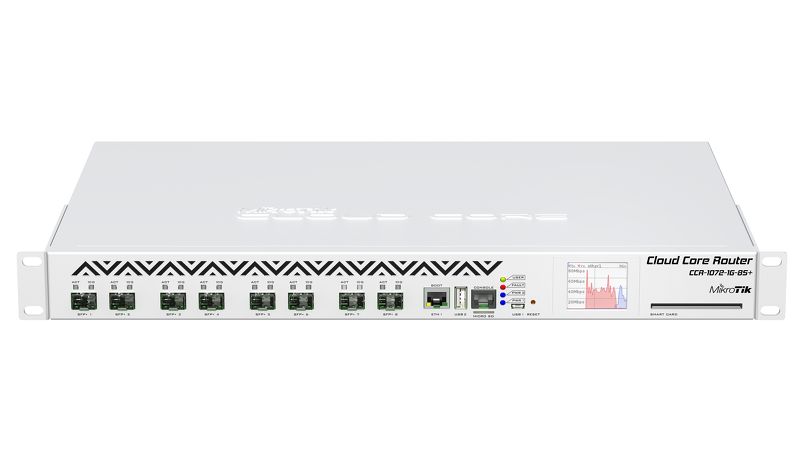

Η νέα μας ναυαρχίδα στα router, η σειρά CCR1072, έχει στο κέντρο της ένα Tilera 72 core CPU, κάθε core (πυρήνας) είναι χρονιασμένος στο 1GHz, και για να χρησιμοποιήσει πλήρως την δύναμή του, το CCR1072 είναι εφοδιασμένο με οκτώ ανεξάρτητα συνδεδεμένα 10G SFP+ ports.

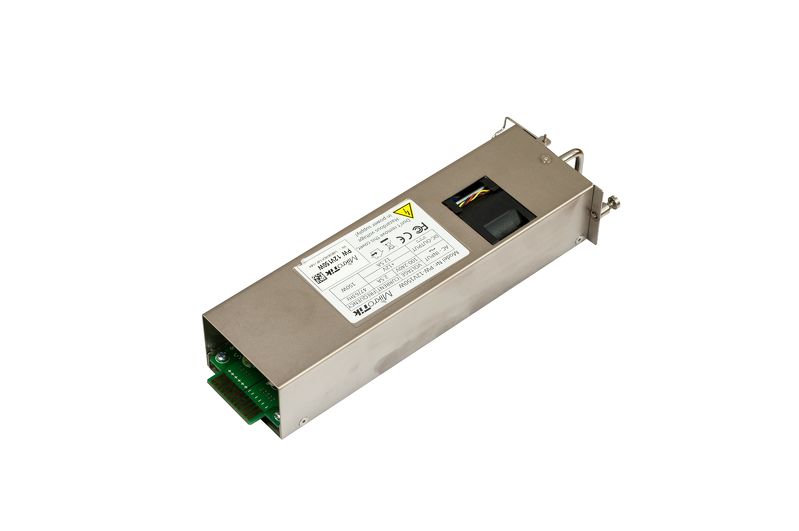

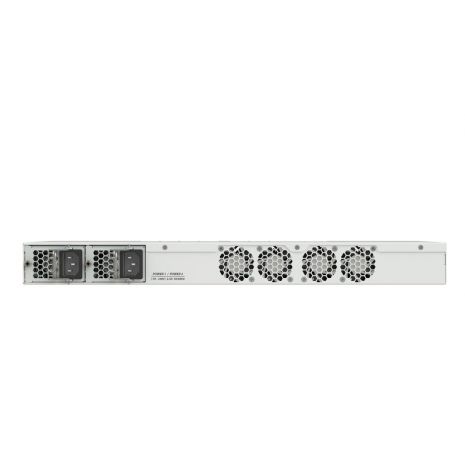

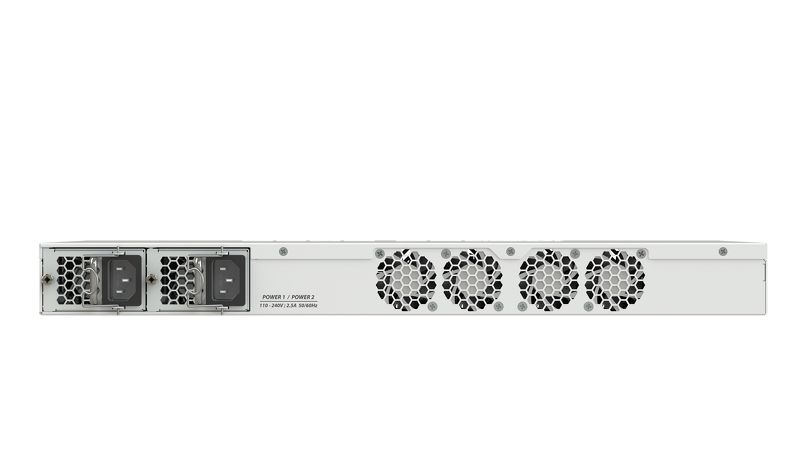

Η μονάδα έρχεται εφοδιασμένη με εγκατεστημένο RouterOS L6, 16GB εσωτερικής ECC RAM, touchscreen color LCD, δυο αποσπώμενα (hotplug) power supplies για εφεδρεία, smart card slot, microUSB, κανονικού μεγέθους USB, microSD και 2x M.2 slots για πρόσθετο αποθηκευτικό χώρο.
Χάρη στο μοναδικό επεξεργαστή 72 πυρήνων και ports άμεσα συνδεδεμένα με την CPU, το CCR1072 έχει δυνατότητα για πάνω από 100 εκατομμύρια πακέτα το δευτερόλεπτο σε ταχύτητα μεταφοράς δεδομένων.
| Details | |
|---|---|
| Product code | CCR1072-1G-8S+ |
| CPU nominal frequency | 1 GHz |
| CPU core count | 72 |
| Size of RAM | 16 GB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 2 |
| Memory Cards | 3 |
| Memory card type | microSD, 2x M.2 |
| Power Jack | 0 |
| PoE in | No |
| Supported input voltage | 12 V - 12 V |
| PoE out | No |
| Voltage Monitor | Yes |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 443x315x40mm |
| Operating System | RouterOS |
| Operating temperature range | -20C to +60C |
| License level | 6 |
| Current Monitor | Yes |
| CPU | TLR4-07280DG-10CE |
| Max Power consumption | 125W |
| SFP ports | 0 |
| SFP+ ports | 8 |
| USB slot type | USB type A |
| Serial port | RJ45 |
| CCR1072-1G-8S+ | Tile 72 Core (1200Mhz, DDR1333) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 119,047.6 | 60,952.4 |
| Bridging | 25 bridge filter rules | 6,130.5 | 74,448.8 | 8,192.7 | 33,557.3 | 10,339.5 | 5,293.8 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 86,507.0 | 44,291.6 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 12,370.4 | 50,669.2 | 13,474.2 | 6,898.8 |
| Routing | 25 ip filter rules | 4,667.6 | 56,683.3 | 5,985.1 | 24,515.0 | 5,873.8 | 3,007.4 |
| CCR1072-1G-8S+ | Tile 72 Core (1200Mhz, DDR1600) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 119,047.6 | 60,952.4 |
| Bridging | 25 bridge filter rules | 6,502.0 | 78,960.3 | 9,099.2 | 37,270.3 | 10,432.3 | 5,341.3 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 94,668.4 | 48,470.2 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 13,500.0 | 55,296.0 | 13,683.5 | 7,006.0 |
| Routing | 25 ip filter rules | 5,247.6 | 63,726.9 | 6,125.5 | 25,090.0 | 6,104.0 | 3,125.2 |
| CCR1072-1G-8S+ | Tile 72 Core (1000Mhz, DDR1333) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 98,801.0 | 50,586.1 |
| Bridging | 25 bridge filter rules | 5,033.3 | 61,124.4 | 7,149.8 | 29,285.6 | 8,682.1 | 4,445.2 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 73,061.0 | 37,407.2 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 10,980.3 | 44,975.3 | 11,368.2 | 5,820.5 |
| Routing | 25 ip filter rules | 4,125.6 | 50,101.3 | 5,051.5 | 20,690.9 | 4,999.0 | 2,559.5 |
| CCR1072-1G-8S+ | Tile 72 Core (1000Mhz, DDR1600) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 98,873.5 | 50,623.2 |
| Bridging | 25 bridge filter rules | 5,764.8 | 70,007.7 | 8,240.2 | 33,751.9 | 8,866.3 | 4,539.5 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 76,201.0 | 39,014.9 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 11,073.5 | 45,357.1 | 11,444.4 | 5,859.5 |
| Routing | 25 ip filter rules | 4,664.7 | 56,648.1 | 5,200.3 | 21,300.4 | 5,321.0 | 2,724.4 |
Part Number:
CCR1072-1G-8S+
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: none
Gigabit Ports:
Gigabit Ports: 1
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:8
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: none
CPU:
CPU: TLR4-07280DG-10CE
Wireless Chip Model:
Wireless Chip Model: none
Architecture:
Architecture: TILE
Licence Level:
Licence: Level6
USB:
- USB: Yes
Memory cards:
- Memory Cards: Yes
Integrated Wireless:
- Integrated Wireless: No
Voltage Monitor:
- Voltage Monitor: Yes
Temperature sensor:
- Temperature sensor: Yes
Serial Port:
- Serial Port: Yes
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: none
