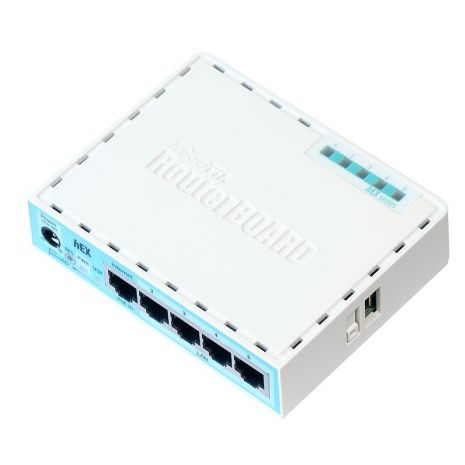

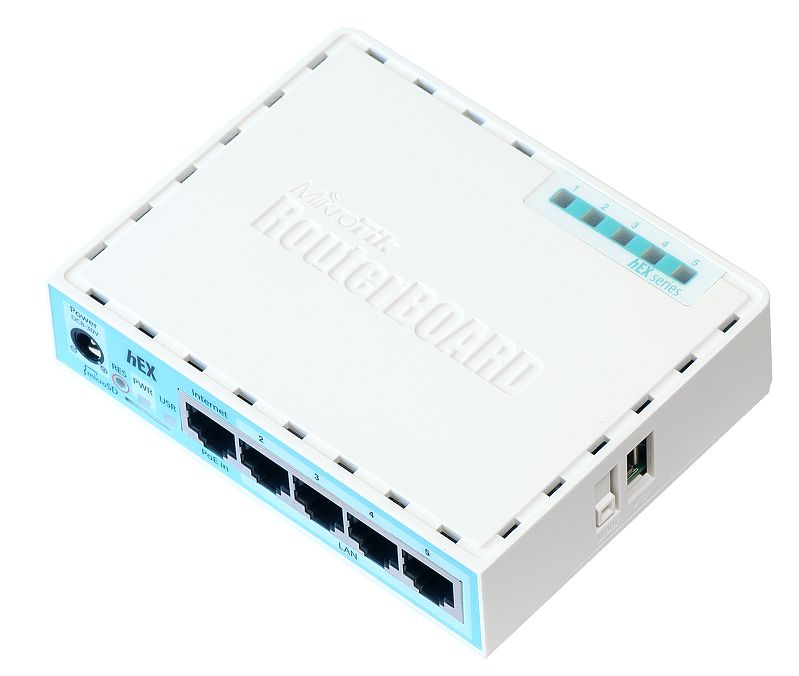

Το hEX είναι ένα 5 port gigabit ethernet router για τοποθεσίες που δεν χρειάζεται ασύρματη επικοινωνία. Η συσκευή έχει ένα πλήρους μεγέθους USB port. Αυτή η νέα ενημερωμένη revision του hEX φέρνει αρκετές βελτιώσεις στην απόδοση.
Είναι οικονομικό, μικρό και εύκολο στην χρήση, αλλά ταυτόχρονα έρχεται με μια πανίσχυρη dual core 880MHz CPU και 256MB RAM, με δυνατότητ να υποστηρίξει όλα τα χαρακτηριστικά του RouterOS.
IPsec Hardware encryption (~470Mbps) και dude server package υποστηρίζονται, το microSD slot προσφέρει βελτιωμένη r/w ταχύτητα στον αποθηκευτικό χώρο μιας microSD κάρτας.
| Details | |
|---|---|
| Product code | RB750Gr3 |
| CPU nominal frequency | 880 MHz |
| CPU core count | 2 |
| Size of RAM | 256 MB |
| 10/100/1000 Ethernet ports | 5 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| Supported input voltage | 8 V - 30 V |
| PoE in | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 113x89x28mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30 + 70 C |
| CPU | MT7621A |
| Max Power consumption | 5W |
| USB slot type | USB type A |
| USB Power Reset | Yes |
| Storage type | FLASH |
| Storage size | 16 MB |
| CPU Threads count | 4 |
Ethernet test results
| RB750Gr3 | MT7621A (880Mhz) 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.4 | 1,972.2 | 443.7 | 1,817.4 | 1039.1 | 532.0 |
| Bridging | 25 bridge filter rules | 162.4 | 1,972.2 | 168.1 | 688.5 | 174.3 | 89.2 |
| Routing | none (fast path) | 162.4 | 1,972.2 | 444.4 | 1,820.3 | 1035.0 | 529.9 |
| Routing | 25 simple queues | 162.4 | 1,972.2 | 179.6 | 735.6 | 171.4 | 87.8 |
| Routing | 25 ip filter rules | 92.9 | 1,128.2 | 94.1 | 385.4 | 93.8 | 48.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RB750Gr3
Προμηθευτές:
MikroTik
LAN 10/100 ports:
Lan 10/100 Ports: none
Gigabit Ports:
Gigabit Ports: 5
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
mPCI: none
Antenna Chains:
Antenna Chains: none
CPU:
CPU: MT7621A
Wireless Chip Model:
Wireless Chip Model: none
Architecture:
Architecture: MMIPS
Licence Level:
Licence: Level4
USB:
- USB: No
Memory cards:
- Memory Cards: Yes
Integrated Wireless:
- Integrated Wireless: No
Voltage Monitor:
- Voltage Monitor: Yes
Temperature sensor:
- Temperature sensor: Yes
Serial Port:
- Serial Port: No
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: none
