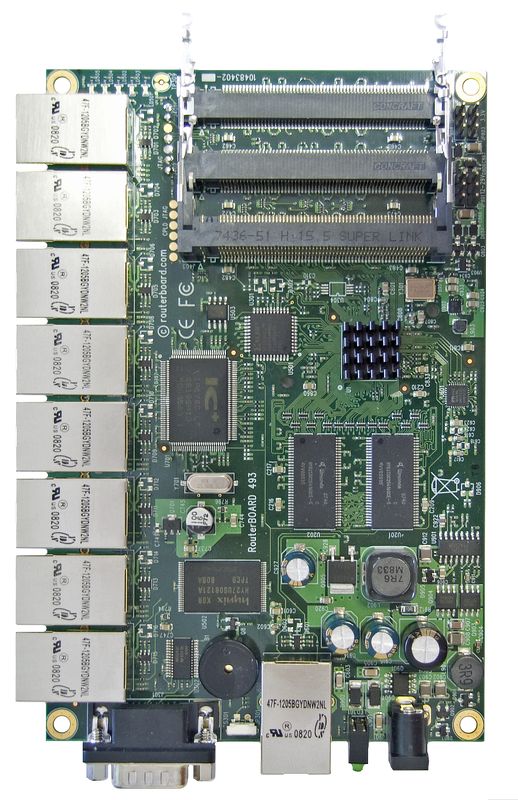

The RB493 has nine ethernet ports and three miniPCI slots, it also has a switch chip, so the ethernet ports 2-9 can be grouped together to make it act as a switch.
RB493 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
The RB493AH model includes the higher speed Atheros 680MHz CPU, more memory, and a Level5 license for more simultaneous tunnel interfaces and hotspot users.
RB493 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
The RB493AH model includes the higher speed Atheros 680MHz CPU, more memory, and a Level5 license for more simultaneous tunnel interfaces and hotspot users.
| Details | |
|---|---|
| Product code | RB493AH |
| CPU nominal frequency | 680 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | 9 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 3 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| Memory Cards | 0 |
| Power Jack | 1 |
| 802.3af support | No |
| PoE out | No |
| Supported input voltage | 8 V - 28 V |
| PoE in | Yes |
| Voltage Monitor | No |
| CPU temperature monitor | No |
| PCB temperature monitor | No |
| Operating temperature range | -40°C .. +70°C tested |
| License level | 4 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | AR7161-BC1A |
| SFP ports | 0 |
| SFP+ ports | 0 |
| Number of chains | 0 |
| Serial port | RS232 |
- RouterBoot: ar7100_3.18.fwf
- Brochure : rb493AH.pdf
- Design Files DXF-PDF : RB493dim.rar
- Design file STEP : RB493G-1.STEP-150427124330.zip
- Quick Guide : rb493-qg_1377089404.pdf
- User Guide : rb493-guide.pdf
- Purchase questions: email sales
- RouterOS software manual
- Declaration of conformity (CE)
| RB493AH | AR7161 100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 16.2 | 196.7 | 47.0 | 192.5 | 187.3 | 95.9 |
| Bridging | 25 bridge filter rules | 16.2 | 196.7 | 47.0 | 192.5 | 86.4 | 44.2 |
| Routing | none | 16.2 | 196.7 | 47.0 | 192.5 | 147.0 | 75.3 |
| Routing | 25 simple queues | 16.2 | 196.7 | 47.0 | 192.5 | 137.0 | 70.1 |
| Routing | 25 ip filter rules | 16.2 | 196.7 | 47.0 | 192.5 | 59.2 | 30.3 |
Part Number:
RB493AH
