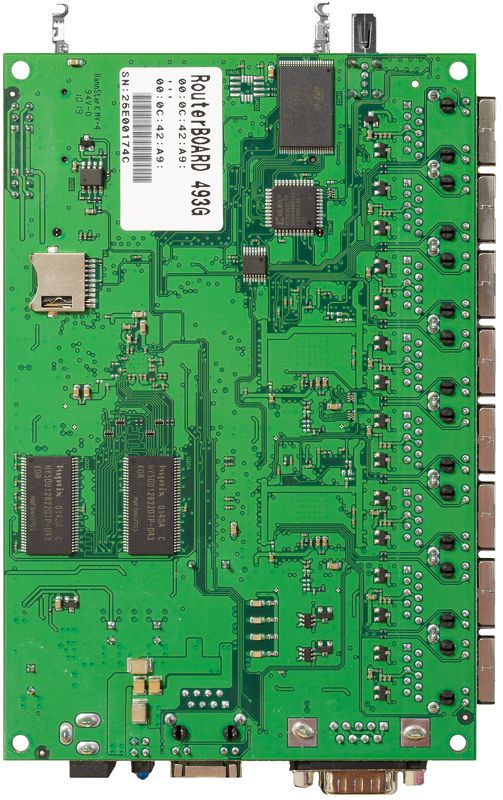

-1.jpg "MikroTik Routerboard RB/493G (Level 4)")

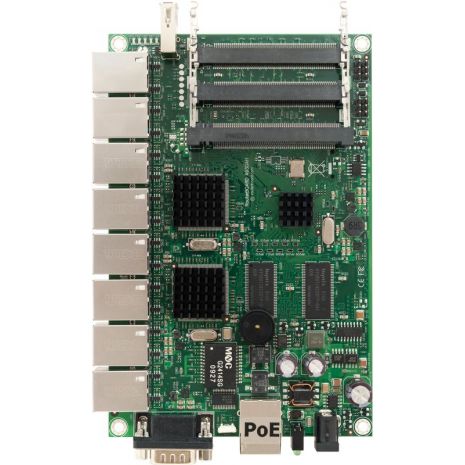

-2.jpg "MikroTik Routerboard RB/493G (Level 4)")

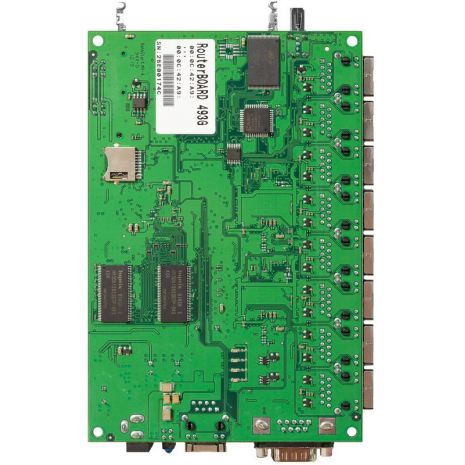

-1.jpg "MikroTik Routerboard RB/493G (Level 4)")

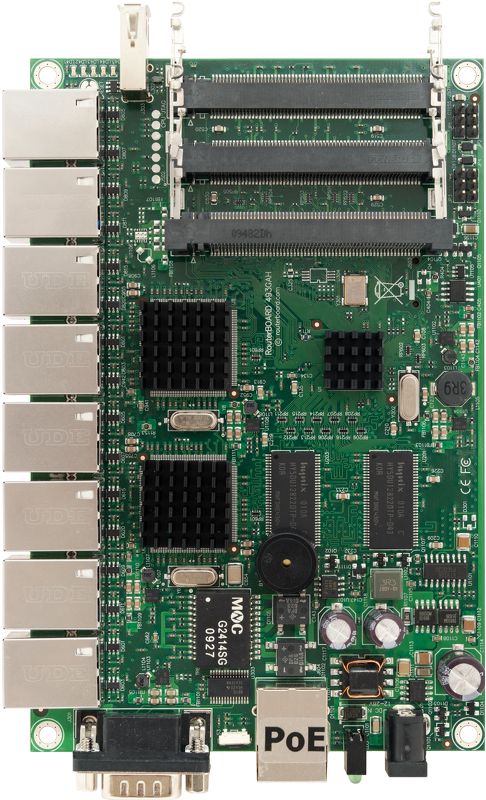

-2.jpg "MikroTik Routerboard RB/493G (Level 4)")
The RB493G has nine Gigabit ethernet ports, three miniPCI slots, and two switch chips, so the ethernet ports can be connected together in two switch groups for wire speed throughput.
The RB493G also has a USB 2.0 port and a microSD card slot for adding more storage or a 3G USB modem for backup connectivity.
The heart of this device is a high performance Atheros AR7161 CPU and it features 256MB of built in RAM. RB493G includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
| Details | |
|---|---|
| Product code | RB493G |
| CPU nominal frequency | 680 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 256 MB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 9 |
| MiniPCI slots | 3 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| 802.3af support | No |
| PoE in | Yes |
| PoE out | No |
| Supported input voltage | 8 V - 28 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 105mm x 160mm |
| Operating System | RouterOS |
| Operating temperature range | -40°C .. +70°C tested |
| License level | 5 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | AR7161-BC1A |
| SFP ports | 0 |
| SFP+ ports | 0 |
| Number of chains | 0 |
| Serial port | RS232 |
- RouterBoot: ar7100_3.18.fwf
- Block diagram : RB493G-block-diagram-150317125042.png
- Brochure : rb493G.pdf
- Design file STEP : RB493G-1.STEP-150427124307.zip
- Dimensions : RB493_dim-140228150615.pdf
- Quick Guide : rb493-qg_1377089414.pdf
- User Guide : rb493-guide.pdf
- Purchase questions: email sales
- RouterOS software manual
- Declaration of conformity (CE)
| RB493G | AR7161 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 58.0 | 704.4 | 171.9 | 704.1 | 187.3 | 95.9 |
| Bridging | 25 bridge filter rules | 58.5 | 710.4 | 84.5 | 346.1 | 86.4 | 44.2 |
| Routing | none | 59.7 | 725.0 | 136.1 | 557.5 | 147.0 | 75.3 |
| Routing | 25 simple queues | 55.2 | 670.3 | 117.7 | 482.1 | 137.0 | 70.1 |
| Routing | 25 ip filter rules | 54.7 | 664.3 | 59.4 | 243.3 | 59.2 | 30.3 |
